Which Types of Sensor Systems Can Benefit from Custom Infrared Optical Filters?

A sensor optical filter helps a detector receive the useful part of the infrared spectrum while reducing light that can distort the reading. It is used in gas detection, temperature measurement, thermal imaging, active infrared sensing, automotive modules, and selected machine vision systems. Selection must consider the source, detector response, field of view, temperature, and likely interference.

BoDian Optical develops optical thin-film components for ultraviolet, visible, and infrared systems. Its infrared range includes narrow bandpass, longpass, shortpass, broadband, and anti-reflection designs, with custom wavelength, size, shape, substrate, and coating structures. With more than 40 years of coating experience, BoDian Optical combines vacuum evaporation and magnetron sputtering with transmission, reflection, and absorption testing. This helps match a sensor optical filter to the complete detector module.

Which Sensor Systems Need Custom Infrared Optical Filters?

Different sensors have different optical failure points. A gas sensor may receive energy outside its target band. A thermal detector may collect unwanted shorter wavelengths. An active infrared camera may be disturbed by visible light or sunlight. Selection starts with what the detector must measure and reject.

Gas and Chemical Detection Sensors Use Targeted Wavelength Isolation

Gas and chemical sensors often depend on a defined absorption region. Radiation outside it can weaken the difference between measurement and reference channels. An infrared filter for gas detection should match the target band, source output, detector sensitivity, and blocking range.

Infrared Narrow Bandpass Filters are the main recommendation because gas sensors normally work around a defined molecular absorption region. Common reference points include approximately 4.26 µm for CO₂, 4.64 µm for CO, and 3.30 µm for CH₄. These values help identify the target range, but the final center wavelength and bandwidth must still follow the source, gas cell, reference channel, and detector response.

BoDian Optical’s INBP4260 is a CO₂ gas detection filter, a center wavelength of 4260 ± 45 nm, a half-bandwidth of 135 ± 20 nm, peak transmission of at least 92%, and blocking from 100 to 30,000 nm at T < 0.1%.

Blocking depth also needs a measurable requirement. Optical density describes how much unwanted light remains in the rejection region: a higher OD permits less leakage. BoDian Optical can support OD6 or higher blocking in selected demanding custom designs, but this should not be treated as the standard value of every filter.

Procurement engineers should define the required OD together with its wavelength range, since an OD figure without a specified blocking interval is incomplete.

Temperature Measurement and Thermal Imaging Systems Collect Infrared Radiation

Temperature sensors and thermal imaging devices often collect radiation across a broader infrared window. Their filter defines that window and stops unwanted shorter-wave energy.

Infrared Longpass Filters suit systems that reject visible or shorter infrared wavelengths while transmitting longer wavelengths. A custom infrared filter for thermal imaging should match the lens, detector window, and operating temperature.

BoDian Optical’s infrared products serve temperature measurement, thermal imaging, industrial monitoring, automotive systems, and safety monitoring.

Active Infrared, Automotive, and Machine Vision Sensors Reduce Ambient-Light Interference

Active infrared systems send light toward a target and measure the return. Proximity sensors, night-vision cameras, driver-monitoring modules, and NIR machine vision equipment can all be affected by sunlight or unrelated infrared radiation.

An infrared longpass filter for machine vision can reduce visible-light leakage. For a defined emitter wavelength, a narrow bandpass design may separate the return signal more effectively. Follow the emitter spectrum and detector response, not the camera label.

How Do Narrow Bandpass, Longpass, and Shortpass Filters Differ?

The sensor optical filter should be chosen according to which part of the spectrum must pass and which part must be blocked.

Narrow Bandpass Filters Isolate a Defined Infrared Signal

A narrow bandpass filter is specified by center wavelength, bandwidth, transmission, and out-of-band blocking. BoDian Optical also treats the transmission region, blocking region, reflectance, and absorbance as core evaluation items.

Buyers should provide the field of view or beam geometry because a wide incident cone can move the effective passband. Narrowband filters are more sensitive to spectral position and manufacturing tolerances than basic edge filters, so the installed optical conditions should be considered during design and approval.

Longpass Filters Reject Shorter Wavelengths

A longpass filter blocks wavelengths below a defined edge and transmits the longer-wave region. It suits thermal sensing, infrared imaging, night vision, surveillance, and active NIR cameras.

The cutoff edge must match the detector’s useful range. An early edge admits unwanted light; a late edge removes useful energy. Also check ripple, blocking range, and installed angle.

Thin-film edge filters require control of both the rejection region and passband behavior, rather than approval based only on a nominal cutoff wavelength.

Shortpass Filters Block Longer-Wave Background Radiation

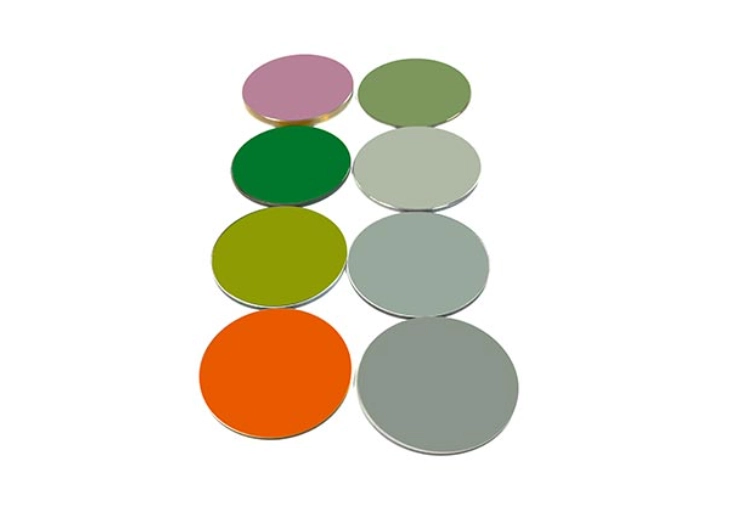

Infrared Shortpass Filters transmit wavelengths below the cutoff edge and reject longer wavelengths. They suit multichannel modules, combined visible-NIR systems, and detectors affected by thermal background.

An infrared shortpass filter for sensors may be paired with another filter to create a controlled window. Review the combination at system level because each coated surface adds reflection and tolerance.

What Specifications Should Buyers Define for a Sensor Optical Filter?

A purchase specification needs more than a product category. The supplier must know what the detector sees, how the filter is mounted, and which errors the system can tolerate.

Wavelength, Transmission, Bandwidth, and Blocking Requirements

For narrowband products, define center wavelength, tolerance, bandwidth, transmission, and blocking. For longpass and shortpass products, define the cutoff point, transmission region, rejection region, and ripple.

The sensor optical filter should then be checked against the source and detector curves. A passband near the edge of either response may waste signal. In gas sensing, review the target and reference channels together.

Do not describe the requirement only as “high transmission” or “deep blocking.” State where the transmission is needed and across which wavelength range the unwanted signal must be suppressed. This gives the coating designer a measurable target.

Angle of Incidence, Temperature, and Optical Geometry

Interference filters respond to incident angle. A normal-incidence curve may shift in a tilted holder, wide-angle lens, or converging beam. State the nominal angle, angular range, field of view, and beam type.

Thin-film filter design must account for oblique incidence because the optical response changes with angle and polarization conditions.

Also provide the actual operating and storage temperature range so the coating team can plan design review and testing. The filter should be approved under conditions that reflect the final sensor rather than only a laboratory setup.

Thin-film interference filters are sensitive to the angle of incidence. As the ray angle increases from normal incidence at 0°, the center wavelength and cutoff edges shift toward shorter wavelengths.

In a non-collimated path, fast lens, or wide-FOV gas sensor, this blue shift can move the passband away from a narrow molecular absorption feature, such as the 4.26 µm CO₂ band. The result may be lower signal voltage, baseline drift, or an incorrect gas reading.

State the nominal AOI and maximum cone angle before the coating is designed and approved.

Substrate, Dimensions, Clear Aperture, and Surface Quality

The substrate must transmit the required infrared range, tolerate the mounting environment, and remain compatible with the coating process.

Available infrared substrate options include silicon, sapphire, calcium fluoride, zinc sulfide, and zinc selenide. These materials should not be treated as interchangeable.

Sapphire is useful where mechanical strength and a suitable transmission window are required, while calcium fluoride, zinc sulfide, zinc selenide, and silicon cover different spectral, thermal, and processing needs.

The final choice should be based on the working wavelength, thickness, surface specification, temperature range, and assembly method. BoDian Optical also checks dimensions, tolerance, edge damage, cracks, polishing condition, and clear aperture during product inspection.

A drawing should state dimensions, thickness, tolerance, clear aperture, coating side, edge treatment, and mounting direction. Surface defects or an undersized aperture can affect the reading even with a correct spectral curve.

The clear aperture deserves particular attention in compact sensor modules. A filter may meet its outer diameter requirement but still restrict the usable beam if the coated or defect-free optical area is too small.

How Can Buyers Reduce Integration Risk and Long-Term System Cost?

Filter price is only one cost. A mismatch can cause recalibration, stronger illumination, holder redesign, or rejection after assembly.

Match the Filter to the Complete Source-Target-Detector Chain

Review the emitter, target, detector, lens, window, and ambient light as one chain. This reveals whether the system needs wavelength isolation, visible-light rejection, or long-wave suppression.

For an active system, compare the emitter spectrum with the detector response before fixing the passband. For passive thermal sensing, begin with the radiation range and detector window. For gas detection, begin with the absorption and reference channels.

Validate Prototypes with Spectral and Mechanical Testing

BoDian Optical performs transmission, reflection, and absorption testing across ultraviolet, visible, and infrared ranges, together with dimensional and surface inspection.

During prototype approval, compare the measured curve with the specification and test the filter inside the assembled sensor. Check signal level, baseline stability, ambient-light response, image uniformity, and calibration shift.

A filter may pass spectral inspection but still cause problems after installation because of mounting angle, internal reflection, aperture restriction, or detector-side limitations. System testing closes this gap.

Evaluate Repeatability, Environmental Conditions, and Replacement Risk

Agree on acceptance limits for the passband, cutoff edge, blocking region, dimensions, and surface condition. Document packaging, storage, cleaning, and mounting.

A lower unit price may not reduce project cost if the filter causes repeated calibration or requires reopening the module. Difficult assemblies need clear batch records and approval limits.

Buyers should also confirm whether production inspection uses the same reference conditions as sample approval. Changes in test angle, aperture, measurement range, or calculation method can make two acceptable curves appear inconsistent.

A Practical Filter Selection Check

Before issuing a purchase order, buyers should complete three checks.

First, compare the proposed curve with the source and detector response rather than approving only a product name.

Second, test the sample in the assembled sensor under expected angle, temperature, and ambient-light conditions.

Third, record acceptance limits for wavelength position, transmission, blocking, dimensions, and surface condition.

This closes the gap between a coating that passes laboratory inspection and a sensor optical filter that works consistently inside the final device.

Pre-RFQ Engineering Checklist for Custom Infrared Sensor Filters

Before submitting an RFQ, define each requirement against the actual sensor rather than copying values from another filter model:

• Spectral Profile and Tolerance:State the required center wavelength or cutoff edge, bandwidth, tolerance, and minimum transmission. Use values from the selected catalog model or an approved custom drawing.
• Blocking Depth and Interval:Define the required OD together with the exact rejection range. Do not reuse the blocking interval of INBP4260 or another model unless it matches the new detector and source.
• Optical Geometry:Provide the nominal AOI, maximum ray angle, beam cone or f-number, field of view, and polarization condition where relevant.
• Substrate Selection:Select silicon, sapphire, calcium fluoride, zinc sulfide, zinc selenide, or another approved substrate according to the spectral window, mechanical layout, coating compatibility, and operating temperature.
• Dimensions and Clear Aperture:State outer dimensions, thickness, dimensional tolerance, coating side, edge treatment, and usable aperture on the drawing. Do not describe a dimensional tolerance as “typical” unless it has been confirmed for the selected material and size.
• Environmental and Acceptance Conditions:Define temperature, humidity, cleaning, mounting stress, storage, spectral test conditions, surface inspection criteria, and the installed-sensor validation method.

Why Choose BoDian Optical for Custom Infrared Sensor Filters?

BoDian Optical supports custom work from spectral design through coating and testing. Its service model also includes processing from supplied materials, samples, and drawings.

Custom Infrared Filter Design for Different Sensor Architectures

Sensor architectures vary in optical layout, beam geometry, and environmental exposure. The engineering team translates each spectral requirement into a manufacturable coating design.

A gas module may need a steep, tightly controlled passband. A thermal imaging system may need a stable longpass edge. A multichannel sensor may need long-wave background suppression.

The coating structure should follow the detector responsivity, optical path, mounting angle, and acceptance limits of the actual module.

Coating, Testing, and Technical Selection Support

Its coating and spectral testing capabilities support review of uniformity, wavelength position, blocking, clear aperture, and production inspection.

A complete request should include detector response, source wavelength, optical layout, working angle, environment, dimensions, and expected quantity. Provide these before sampling, while changes remain manageable.

This approach is more useful than selecting a standard filter first and adjusting the rest of the sensor around it. The filter specification should follow the real signal path and the failure mode the system needs to prevent.

Service and Contact for Samples, Drawings, and Custom Projects

For a new sensor project, prepare the target wavelength or cutoff edge, transmission and blocking requirements, drawing, clear aperture, angle, temperature range, and sample quantity.

These details help determine whether a narrow bandpass, longpass, or shortpass design fits. Submit project information through the BoDian Optical contact page for technical review and sample planning.

Conclusion

Custom infrared optical filters are most useful when a standard filter cannot match the detector band, source wavelength, beam angle, package size, or blocking requirement.

Gas sensors usually begin with a narrow bandpass design. Thermal and temperature systems often require longpass or broadband control. Active NIR modules may need either visible-light rejection or emitter-matched wavelength isolation.

Before ordering, compare the proposed curve with the complete source-target-detector chain, test the sample in the assembled module, and record the final spectral, mechanical, and environmental acceptance limits.

FAQ

Q1: What Is the Main Purpose of a Sensor Optical Filter?

A: It passes the wavelength range that carries the required signal and reduces light that can cause noise, drift, false triggering, or poor image contrast.

Q2: Should a Gas Sensor Use a Narrow Bandpass or Longpass Filter?

A: Most wavelength-specific gas sensors start with a narrow bandpass filter because the measurement depends on a defined absorption region. A longpass filter is relevant only when the wider optical design also needs shorter-wave rejection.

Q3: What Information Is Needed to Order a Custom Infrared Filter?

A: Submit the target wavelength or cutoff edge, blocking range, required OD, AOI, beam cone, substrate, dimensions, clear aperture, operating temperature, and engineering drawing.
