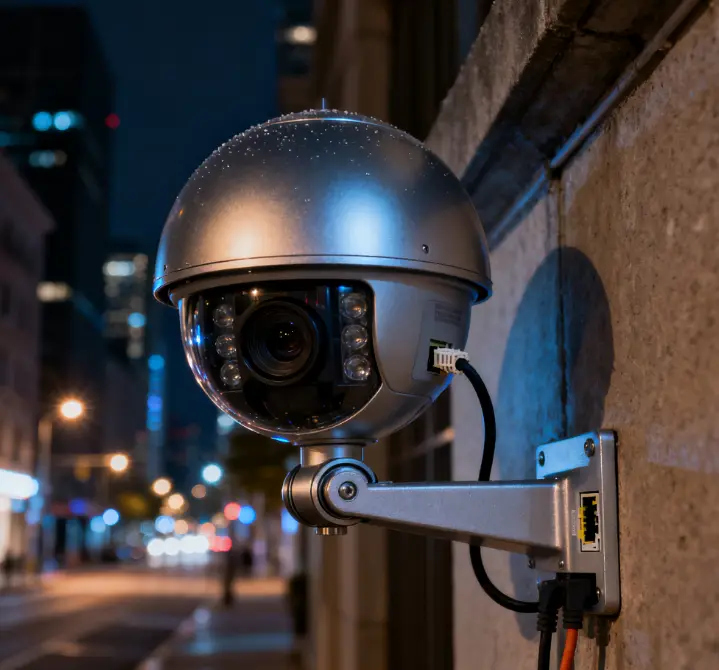

Night vision systems have become essential in security, wildlife monitoring, smart transportation, and a wide range of industrial imaging. As these applications expand, more users are paying attention to the “invisible” components that determine how well a night vision device actually performs. One of these components is the infrared (IR) optical filter. Although usually overlooked, the filter directly affects how much useful infrared light reaches the sensor, which wavelengths are blocked, and how clearly the final image appears.
Infrared filters produced by Bodian Optical, a specialist in precision optical components, are widely applied in professional night-vision cameras and imaging devices worldwide. The following guide breaks down the fundamentals of IR filters in a practical way and highlights several filter models—ILP10000, ILP5500, and ILP8200—that are built for stable, real-world performance.
Why Are Infrared Filters Essential for Night Vision Performance?
Understanding the role of IR filters starts with understanding what night-vision cameras actually “see.” Most night-vision systems rely on infrared wavelengths rather than visible light. Imaging sensors can detect IR light, but they can also pick up stray visible light, light pollution, and unwanted reflections. Without a proper filter, the camera receives a mix of signals that reduce clarity.
Enhanced Light Transmission Efficiency
Before diving into more filter types, it helps to look at how transmission influences every night-vision result. When a filter allows the correct infrared wavelengths to reach the sensor more smoothly, the camera gains cleaner signals and better brightness even in darker scenes. High transmission means less noise and faster image response. Bodian Optical designs long-wave pass filters with coatings that keep transmission high across the intended IR band, so the sensor works with useful information instead of stray wavelengths.
Improved Image Clarity and Target Definition
Better transmission alone doesn’t finish the job. When visible light or other unexpected wavelengths enter the imaging path, the final picture can look washed out or blurry. A suitable IR filter blocks the distracting spectrum, leaving more contrast between objects and background. This is especially important for devices used for night patrol, wildlife observation, or industrial monitoring, where identifying a target quickly matters.
Optimized Sensor Sensitivity in Low-Light Scenes
Different sensors (CMOS, CCD, InGaAs) react differently to various wavelengths. Filters help match the wavelength range to the sensor’s strongest region. By doing so, the camera produces more stable low-light images and avoids overloading the sensor with irrelevant information. This is exactly why night-vision manufacturers typically use long-wave pass filters—these filters direct the right portion of light toward the most responsive area of the sensor.
How Do Long Wave Pass Filters Improve Night Vision Camera Results?
Long-wave pass filters (LWPs) are among the most widely used infrared filters in night-vision devices. They block shorter wavelengths—visible light—and let longer infrared wavelengths pass. This mechanism provides several practical advantages.
Selective Wavelength Transmission for Better Contrast
Before considering specific models, it’s useful to understand how selective transmission helps with image clarity. When shorter wavelengths are filtered out, the background interference drops. What remains is the steady IR reflection from objects, which creates sharper contours. For surveillance cameras, this means clearer faces and shapes at night. For wildlife cameras, it brings more stable motion capture without overexposure.
Reduction of Visible Light Interference
Visible light sources—street lamps, moonlight, vehicle headlights—can disrupt infrared imaging. LWP filters remove this disturbance by cutting off the visible band. This gives night-vision cameras a more stable baseline whether the environment is bright, dim, or constantly changing. It also reduces color shifts and flaring effects caused by mixed lighting.
Stable Optical Performance Under Varying Illumination
Light in outdoor environments never remains constant. Clouds move, cars pass by, and IR illuminators turn on and off. A long-wave pass filter provides consistency by allowing only the designated wavelength region to pass. This consistency is important for AI-based recognition systems, machine-vision setups, or long-term recording devices. Bodian Optical’s IR filters are known for durable coatings and low-temperature drift, helping cameras stay stable across different weather conditions.
What Types of Infrared Filters Are Commonly Used in Night Vision Devices?
Night-vision cameras use different filter types depending on the required imaging effect, target wavelength, and environmental condition. While the market includes many variations, several major groups stand out.
Long Wave Pass Infrared Filters
These filters allow longer wavelengths—usually starting from 550nm, 820nm, or above—to pass. They are the backbone of IR night-vision construction, commonly paired with IR LEDs or laser illumination. For example, the ILP5500 and ILP8200 from Bodian Optical belong to this category.
Short Wave or Narrow Band Infrared Filters
Some devices need more specialized spectral control, such as laser-based ranging or communication. Narrow-band filters isolate a very thin wavelength region, giving precise responses. While these filters are less common in conventional security systems, they appear frequently in high-precision sensing.
Composite Optical Filter Structures
In certain advanced systems, filters are stacked or combined to achieve multi-band effects, enhanced durability, or more specific wavelength shaping. These designs are typical for industrial sensing or research equipment where environmental stress is higher.
Which Infrared Filters Are Best Suited for Professional Surveillance and Security Needs?
With the basics in place, it becomes easier to evaluate actual products. Bodian Optical offers several long-wave pass infrared filters built for imaging devices that operate around the clock. Below are three widely used options.
Deep-Infrared Screening with ILP10000 Long Wave Pass Filter
Before moving to the next product, it’s important to highlight what makes the ILP10000 unique. The characteristic wavelength point at 50% transmittance is 10000 nm, entering the deep-infrared region used in thermal imaging, gas detection, and special night-vision setups. The ILP10000 provides a strong separation between visible light and far-infrared signals. Cameras using this filter gain a cleaner thermal image with fewer background distractions.
This filter works well for:
- Military thermal sights
- Border security systems
- Gas-leak detection cameras
- Scientific research setups
Its coating structure is built for harsh environments, which helps during long-term outdoor deployment.
High-Transmission Mid-Band Filtering with ILP5500 Long Wave Pass Filter
The next option suits a broader range of mainstream night-vision devices. The characteristic wavelength point at 50% transmittance is 5500 nm. This wavelength range works nicely with many security cameras and mid-infrared detection units. Due to its stable coating design, the filter handles temperature changes and continuous illumination without drift.
Typical applications include:
- Outdoor surveillance cameras
- Smart transportation night-vision units
- IR imaging in industrial inspection
Compared to deeper-IR filters, the ILP5500 delivers a more balanced combination of transmission and durability.
Balanced Spectral Control with ILP8200 Long Wave Pass Filter
Sitting between the two previous models, the characteristic wavelength point at 50% transmittance is 8200 nm. This model is used in devices that require balanced filtering—not too deep, not too moderate. Many modern night-vision security systems rely on this wavelength for creating smooth, high-contrast scenes.
This filter is often selected for:
- Intelligent security systems
- Car night-vision cameras
- General industrial monitoring setups
The ILP8200 provides dependable IR separation without introducing color contamination or inconsistent imaging.
How to Choose the Right Infrared Filter for Your Night Vision Device?
Selecting the right filter doesn’t have to be complicated. Several practical considerations help narrow the choices.
Matching Filter Cut-on Wavelength with Sensor Type
Before choosing a model, users often compare sensor response curves with filter specifications. A filter that matches the sensor’s strongest region will produce the best results. For instance, thermal detectors pair better with higher-wavelength filters like ILP10000, while security cameras tend to use mid-range versions such as ILP5500 or ILP8200.
Considering Application Scenarios and Light Conditions
Outdoor patrol cameras deal with unpredictable lighting. Wildlife cameras need silent, stable imaging without startling animals. Industrial cameras might operate near heat sources. Thinking about the environment first usually leads to a clearer choice.
Evaluating Durability, Coating Quality, and Temperature Stability
A filter works 24 hours a day. Durability matters. Filters used in surveillance or industrial monitoring often require robust coatings that stay stable against humidity, temperature cycles, or mechanical stress. Bodian Optical uses multilayer coatings designed for long-term performance, which gives night-vision system designers fewer worries during extended operation.
FAQ
Q1: Do all night-vision cameras need infrared filters?
A: Most cameras designed for night-vision or IR illumination use some type of infrared filter. Without a filter, the sensor usually receives too much mixed light, leading to lower clarity and weaker night performance.
Q2: What is the difference between 5500nm, 8200nm, and 10000nm long-wave pass filters?
A: These numbers represent the characteristic wavelength point at 50% transmittance. A higher number means the filter blocks more of the shorter wavelengths and passes deeper IR light. Lower values suit security cameras, while higher ones fit thermal or scientific devices.
Q3: Can one IR filter work for all imaging environments?
A: Not always. Each application has different lighting conditions, sensor types, and wavelength needs. Choosing the correct filter model usually leads to better long-term performance and cleaner night-vision imaging.
