Optical Filters on UAV Gimbals: What They Do and Why They Matter

Unmanned aerial vehicles have evolved far beyond simple flying platforms. Modern UAV gimbals carry compact but highly advanced optical systems, and at the core of these systems sits a component most people never see but rely on in every frame: the optical filter.

A UAV gimbal’s camera may be shooting in daylight, tracking heat signatures at night, or collecting multispectral data over farmland. In every scenario, the filter stack shapes the light before it reaches the sensor. Without the right filter, even the most expensive sensor struggles with glare, noise, or washed-out details. For companies developing high-precision cameras, such as Bodian Optical, filters are no longer accessories—they are part of the imaging engine.

To understand how different filters change what a UAV can “see,” it helps to start with their functions and the typical configurations used in real missions.

What Types of Filters Are Used on UAV Gimbals?

UAV gimbals usually integrate several types of optical filters, each designed to pass or block specific wavelengths. Different missions call for different spectral windows, and this list covers the filters you’ll find most often in professional airborne systems.

Filter Types and Applications

Below is the full table from the reference document, translated and kept in its original layout:

These filters work together like a set of rules telling the sensor which light is useful and which is simply noise. A UAV’s imaging system is constantly fighting sunlight, city lights, heat sources, and atmospheric reflections. The right filter stack gives the sensor “clean” data rather than a messy flood of wavelengths.

How Filters Work Inside a UAV Gimbal

Inside the gimbal, filters sit between the lens group and the sensor. The spot seems like a tiny thing. But it is the best place to manage the spectrum. The filter does spectral choice. And this answers two questions for each photon:

• Is this light part of the target signal?
• If not, should it be removed?

1. Removing Interference

A UAV often flies through harsh lighting conditions—harsh sunlight, glints from water, ground reflections, even city light pollution at night. These unwanted wavelengths flood the sensor and drown out faint signals. When filters cut out these off-band wavelengths, the signal-to-noise ratio improves dramatically. Small details stand out. Edges sharpen. Thermal signatures become clearer.

2. Extracting Useful Signals

LiDAR, for example, sends out laser pulses and must pick up the same wavelength reflected back. A narrowband filter on the receiver side suppresses all wavelengths except that one tiny laser band. The result: cleaner range measurements and better point-cloud accuracy.

The same principle applies to UV inspections of power lines, multispectral agriculture imaging, and mid-infrared thermal detection.

Expanding the Mission: How Filter Combinations Enable More Applications

One filter is rarely enough for modern UAV missions. By combining specific filter types—or by customizing the coating design—gimbals can adapt to very different tasks. Below are several application areas where filter configuration plays a decisive role.

Military & Security Surveillance

A mix of infrared filters and narrowband laser filters lets UAV gimbals:

• Run in full dark,
• Follow heat-giving targets,
• Fight off mess from flares or bright lights,
• Pull laser-rangefinder bounces even in day fog.

In these spots, toughness counts as much as spectral truth. Filters need steady coatings, low soak-up, and tough weather fight. This is a place where skilled thin-film makers shine.

Precision Agriculture

Multispectral filters help UAVs capture vegetation indices like NDVI, NDRE, or custom narrowband markers. Each band tells a different story about plant stress, chlorophyll density, or water condition.

Farmers and agronomists don’t look at the filter itself—they look at the consistency of the data. A multispectral filter with stable transmittance curves across temperature swings ensures that plant-health maps remain trustworthy over a whole growing season.

Industrial Inspection

UV filters are used in power-grid inspections to highlight corona discharge—tiny electrical arcs invisible to the naked eye. Without a filter that isolates the UV emission band, the camera would simply see noise.

Narrowband filters are also key in factories using machine vision to separate materials, detect defects, or identify specific chemical signatures under controlled lighting.

Why Professional UAV Makers Choose Custom Filters

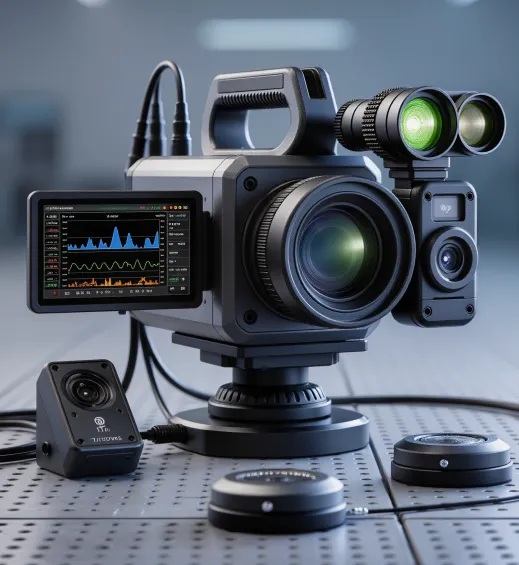

Ready-made filters often miss the mark when gimbals need higher pass-through, deeper stop, or certain work heats. This is where firms like Bodian step in big.

With over 40 years of study in optical thin films, the team has built a broad set of UV, visible, and infrared filters fit for air and plant settings. Their skills include:

• Ultra-high transmittance designs (often above 90%)
• Deep blocking up to OD6 or higher
• Narrowband filters with ≤6% bandwidth or even tighter
• Custom wavelength selection across UV–VIS–IR
• Multiple substrate options: germanium, silicon, CaF₂, ZnS, ZnSe
• High-uniformity coatings using German Leybold Syrus 1350, Helios800 magnetron sputtering, and Optorun OTFC-1300 systems
• Comprehensive spectral testing with Cary5000, Cary7000 and PerkinElmer instruments

For UAV integrators, consistency is often the deciding factor. A thermal camera or multispectral sensor must perform identically in summer heat, winter cold, and high-humidity air. Bodian’s coating process—supported by environmental tests, batch uniformity control, and full optical-property measurement—helps maintain that stability.

Another cause users pick custom filters is fit in machines. UAV gimbals are tight, and filter sizes may need tweaks to odd shapes or close fits. The firm gives:

• Sizing down to small custom apertures,
• Double-sided polishing,
• Strengthened substrates,
• Strict appearance-quality standards.

These bits seem small. But they pick if the end gimbal runs well or faces bad shines or ghost shots.

A Closer Look at How Filters Expand Infrared Detection Capabilities

Infrared detection on UAVs is growing rapidly, from public-safety patrols to industrial inspections and land-resource monitoring. Advanced IR filters—long-pass, short-pass, narrowband, anti-reflection—allow UAV sensors to isolate temperature differences, detect gas leaks, or read thermal patterns on surfaces.

High-performance IR filters require precise control of thin-film thickness, uniformity, and material selection. Technologies such as magnetron sputtering and multi-material stacking help produce coatings with high transmittance, low loss, and strong cut-off depth. When combined with AI-based image recognition or multispectral fusion, UAVs can do far more than simply “capture heat”—they interpret and label the environment.

Bodian’s work in this area fits directly with national defense, smart-city monitoring, medical devices, and aerospace needs. As the market demands higher spectral purity and temperature stability, custom IR filters will continue to define the performance ceiling of UAV gimbals.

Summary

Optical filters are the unsung heroes inside UAV gimbals. They let sensors work in harsh light, isolate important wavelengths, and reveal details that would otherwise stay invisible. Whether for nighttime surveillance, agricultural mapping, power-grid inspections, or long-range reconnaissance, filters give UAVs the ability to “see smarter.”

Companies like Bodian have pushed filter performance forward through decades of thin-film research, advanced coating equipment, and strict quality systems. With the trend toward more compact gimbals and more specialized missions, the role of precise, mission-specific filters will only grow.

FAQ

Q1: Why can’t UAV cameras work without optical filters?

A: Because raw light contains too many unwanted wavelengths. Filters remove noise, prevent sensor overload, and allow the camera to pick up weak or specific signals—crucial for LiDAR, infrared imaging, and multispectral analysis.

Q2: Can one filter serve multiple UAV applications?

A: Not usually. A mission that needs high-quality visible imaging is very different from one requiring IR detection or UV corona observation. Most professional UAVs use a combination of filters or multi-layer filter modules.

Q3: What makes Bodian’s filters suitable for UAV gimbals?

A: The company offers high transmission, deep blocking, strong environmental durability, and precise custom wavelengths. Their production line—backed by imported sputtering and evaporation systems—provides stable quality suitable for professional airborne devices.
