Introduction
If you’ve ever tried to measure something hot—say molten steel glowing at 1600 °C or a high-power semiconductor wafer just out of processing—you’ll know how unfriendly heat can be to instruments. Sensors drift, lenses haze, and filters shift their spectral behavior. A few nanometers of drift doesn’t sound like much on paper, but in a gas analyzer or an infrared thermometer, that small shift can mean the difference between a reliable reading and a dangerous false alarm.

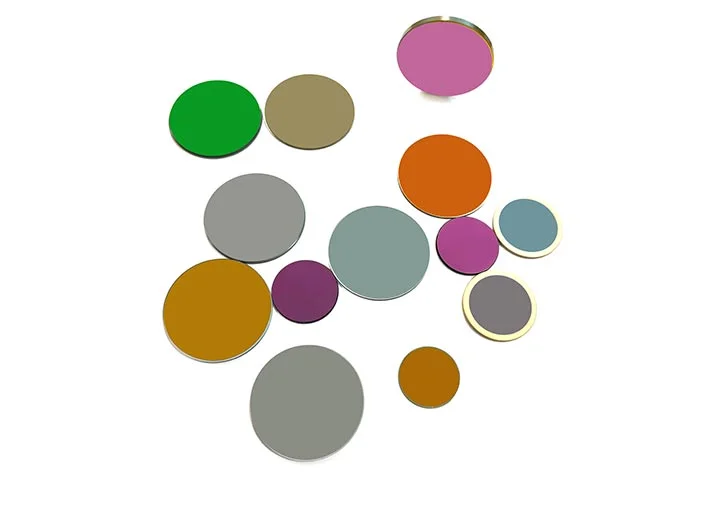

That’s where temperature-stable infrared (IR) filters come into play. They look like small pieces of coated glass or crystal, but behind those shiny layers lies decades of material science, thin-film design, and engineering. And for industrial devices that run under heat stress 24/7, stable filters are not just nice to have—they’re mission critical.
What Do We Mean by “Temperature Stable”
Infrared filters are usually built from dielectric thin films stacked on substrates such as silicon, germanium, or zinc sulfide. When temperature changes, two things happen: the refractive index of the films shifts, and the substrate itself expands. Together, they move the filter’s center wavelength (CWL). A thermal coefficient of 2–5 pm/°C is typical for hard-coated filters. That may sound tiny, but across a 100 °C span, it can shift a bandpass by half a nanometer—enough to blur a gas absorption line.
A temperature-stable IR filter is engineered so that this drift is minimized. The film stack is designed, annealed, and paired with a stable substrate so that the wavelength shift stays within a very narrow tolerance, often less than ±0.2 nm across the operating range.
Why Industrial Devices Need Them
Thermal Drift Leads to Wrong Readings
Take a pyrometer measuring a furnace wall at 1200 °C. If its filter shifts just a fraction, the sensor may interpret background radiation instead of the target band. That could make the system under-report temperature by 50 °C or more, which is unacceptable in metallurgy or glass manufacturing.
Long Duty Cycles in Harsh Environments
Industrial instruments often run non-stop—think continuous emission monitors in power plants or thermal imagers in oil refineries. They can’t afford recalibration every week. Temperature-stable filters reduce drift, which means fewer shutdowns and maintenance visits.
Safety and Compliance
For gas detection systems using NDIR (non-dispersive infrared) methods, regulations demand high repeatability. A stable filter keeps the passband aligned with CO₂ or CH₄ absorption lines, ensuring the alarm goes off only when it should—not because the filter “wandered” under heat.
Technologies That Deliver Stability
Thin-Film Coating Expertise
Books like Thin-Film Optical Filters remind us that quarter-wave stacks, Fabry–Perot cavities, and multilayer designs are the building blocks. But in practice, it takes advanced deposition control to get repeatable results. Jingyi Bodian, for instance, uses German Leybold Syrus 1350 evaporation and Helios magnetron sputtering equipment. These allow precise control over layer thickness, density, and refractive index, all of which directly affect thermal stability.
Substrate Choices Matter
- Silicon: excellent for 1–6 µm range, with good mechanical strength.
- Germanium: covers up to 14 µm, though heavier.
- Calcium Fluoride and Zinc Sulfide: lighter, good for mid-IR.
Each material expands differently under heat, so matching substrate expansion with coating design is key.
Environmental Testing and Annealing

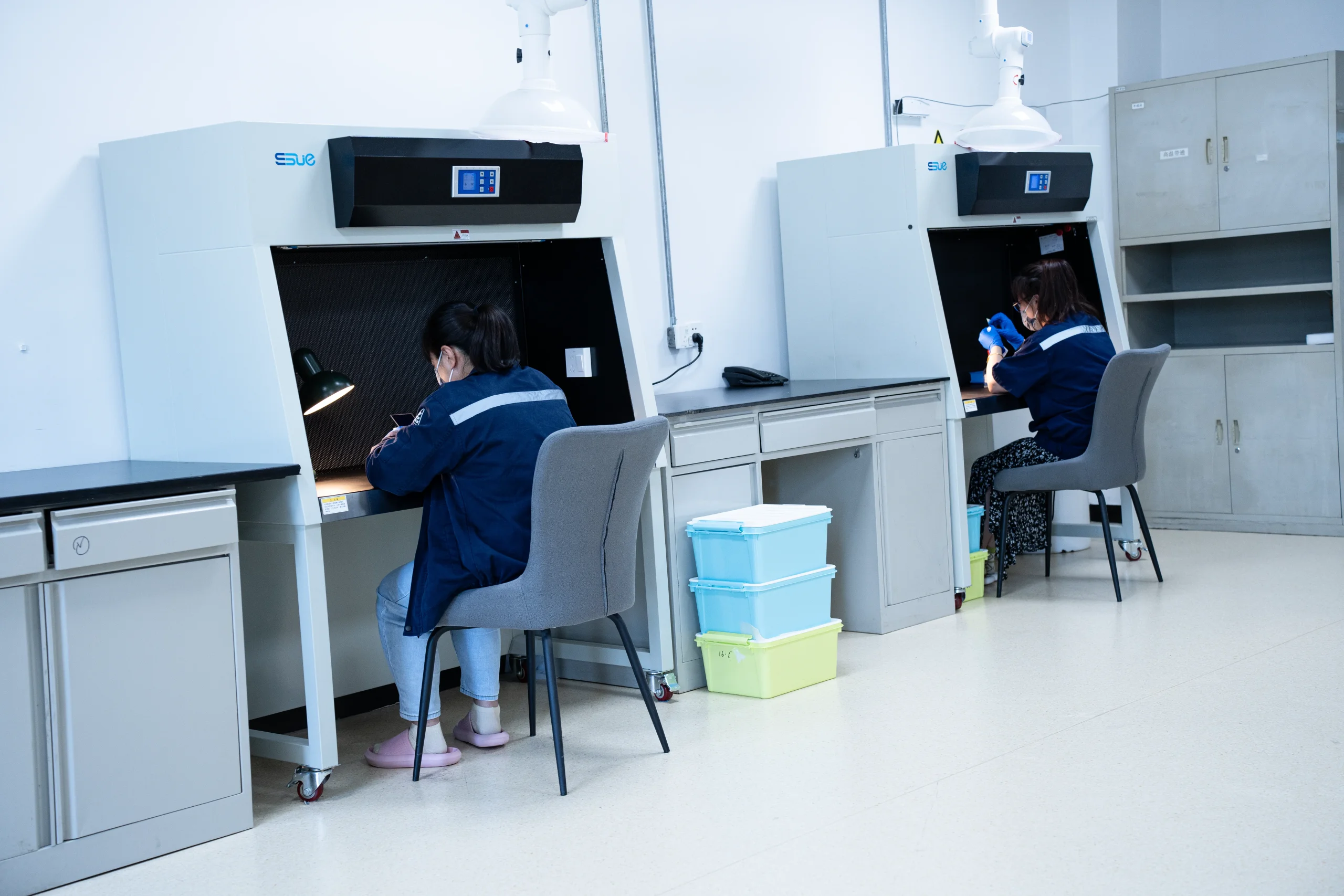

It’s not just about the design. Filters are often heat-treated after deposition to lock in stability. Companies like Jingyi Bodian also run environmental aging tests, high-humidity soaks, and mechanical strength checks. These steps weed out coatings that might peel, craze, or drift under industrial use.
Real-World Applications
Pyrometry and Thermal Imaging
Steel, cement, and glass plants depend on IR pyrometers for temperature feedback. A drift-prone filter can cause product defects or even furnace damage. Stable narrowband filters keep readings accurate shift after shift.
NDIR Gas Analysis
Infrared filters tuned to 4.26 µm (CO₂) or 3.3 µm (CH₄) are the backbone of environmental monitoring. Imagine a safety sensor in a subway station: you don’t want it to miss a methane leak just because the filter warmed up.
Machine Vision and Automotive Night Cameras
In automotive ADAS, night vision cameras use IR bandpass filters. A stable filter means the camera “sees” pedestrians consistently, whether the system is running in winter cold or summer heat.
Healthcare and Scientific Instruments
Even clinical devices—like fluorescence PCR analyzers—benefit. A wavelength drift here can mean weaker signals and misread results. Stability translates into trust in the data.
The Jingyi Bodian Approach
Beijing Jingyi Bodian Optical Technology has been in the optical coating field since 1978. Over 40+ years, the company has built expertise in:
High precision filters: Achieve ultimate performance featuring an ultra-narrow bandwidth (<0.5 nm @ 589 nm), a peak transmittance of over 90%, and a cut-off depth exceeding OD6 (Optical Density 6, indicating a transmittance of less than 0.0001%).
- Customization: tailor CWL, size, shape, and even aperture.
- Vertical integration: It encompasses a full-chain process, ranging from polishing of silicon/germanium substrates and vacuum deposition to spectral testing conducted with Cary 5000 and 7000 series spectrophotometers as well as the Spectrum 3 Fourier Transform Infrared Spectrometer, ensuring controllable quality.
- Environmental tolerance: products that remain stable from –50 °C to 200 °C.
- Fast delivery: small-batch samples often ready within 1–2 weeks, which is handy for R&D teams.
One interesting application they like to showcase is infrared street light control systems: filters detect human body IR and trigger a lens–sensor–controller chain to switch on lights. It sounds everyday, but under the hood it relies on filters that don’t misfire under summer or winter conditions.
Benefits for Industrial Device Reliability
- Consistency: Stable CWL means repeatable results across months of use.
- Reduced Maintenance: Less recalibration, fewer emergency service calls.
- Extended Lifespan: Coatings survive humidity, vibration, and temperature cycles.
- Better ROI: A reliable filter may cost more upfront, but it prevents downtime that costs thousands per hour in some plants.
There’s also a softer point: operators trust instruments that “don’t lie.” If a filter keeps readings rock solid, users stop second-guessing their devices. That trust, though intangible, is invaluable.
A Quick Buyer’s Checklist
When selecting IR filters for industrial use, consider:
- Band and center wavelength at your working temperature.
- Thermal shift coefficient (ask suppliers for numbers).
- Substrate type vs. environment (corrosive, humid, high-temperature).
- Coating process: sputtered hard coatings generally outperform evaporated soft ones in stability.
- Test certificates: look for ISO9001, RoHS, REACH, plus actual thermal cycling data.
Conclusion
Industrial devices are only as good as their weakest optical element. In a gas analyzer, that might be a filter no larger than your thumbnail. But if it drifts with heat, the whole instrument’s reliability collapses. That’s why temperature-stable IR filters aren’t optional—they’re central.
With decades of coating know-how, advanced deposition tools, and rigorous testing, companies like Bodian deliver filters that thrive under heat, humidity, and long duty cycles. For plant managers, engineers, and researchers, the bottom line is simple: stable filters mean stable instruments.
FAQ
Q1: Can a standard IR filter be used in high-temperature industrial devices?
A: Not reliably. Standard filters may shift their passband significantly when heated, leading to drift. Industrial-grade, temperature-stable filters are designed and tested to prevent this.
Q2: What’s the typical operating range for a temperature-stable IR filter?
A: Depending on design, many hard-coated filters work stably from –50 °C to +200 °C. Jingyi Bodian offers products specifically rated for this wide range.
Q3: How do I know if a filter is stable enough for my device?
A: Ask the supplier for the thermal shift coefficient (in pm/°C) and environmental test data. A good practice is to simulate the filter’s wavelength shift across your device’s expected working range and see if it stays within spec.
