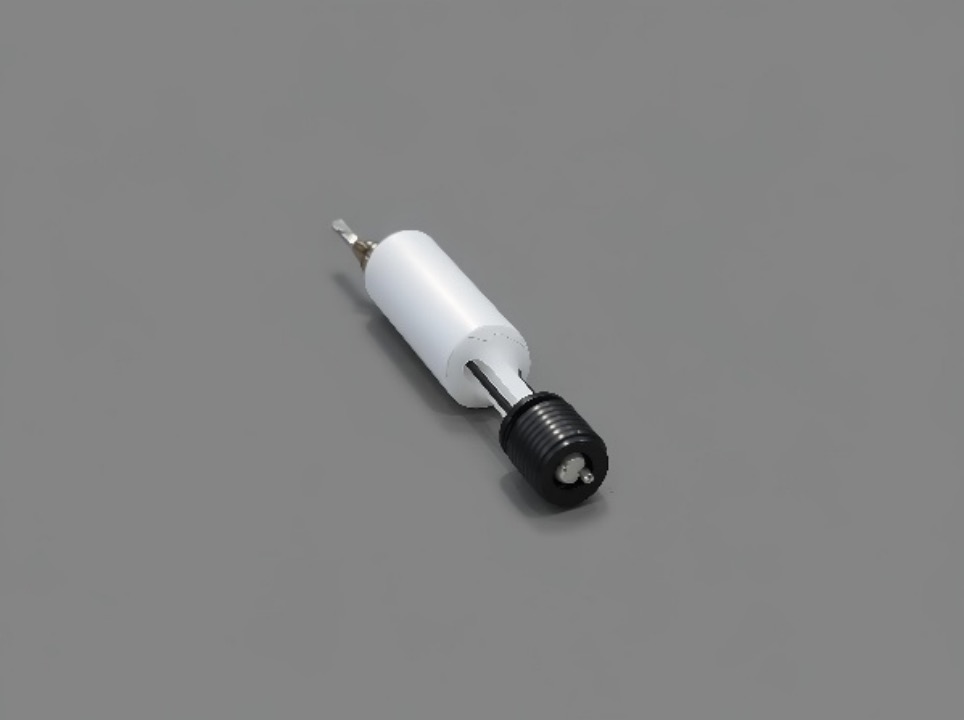

This infrared light source is a mid-infrared blackbody radiation source operating in the wavelength range of 2–15μm. Endowed with core characteristics including stable full-spectrum radiant output, a wide temperature adjustment range, and high emissivity, it plays an irreplaceable role in industrial measurement, gas analysis, spectral detection, and other fields.
It is particularly suitable for high-precision and high-reliability infrared-related application scenarios.
Recommended Operating Parameters：
| Voltage /V | 7.0 |
| Temperature /℃ | 400 |
| Current /A | 0.54 |
| Power/W | 3.78 |
Properties at Recommended Parameters：
| Typical Life | 70000 Hours |
| Emissivity /% | 70 |
| Active Area | 5mm*5mm |
In order to enhance the efficient utilization of the light source’s energy, additional reflector can be added to focus the light energy.

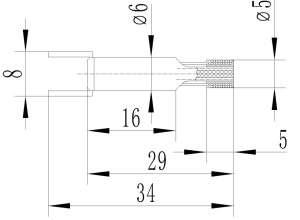

Light source size：
