Buying optical components is rarely just about picking the cheapest option. You might see two filters with nearly identical numbers on a spec sheet, but one costs double the other. This usually happens because one meets the requirements in theory, while the other actually works in the real world. If you are looking for a reliable partner, BoDian Optical brings years of specialized experience in high-precision optical coating. The company focus on consistent spectral performance and have built a reputation for delivering reliable standard optics and customized filters to global sensor manufacturers.

Center Wavelength: Why Tolerance Matters More Than Nominal Values

The center wavelength (CWL) is the point where the filter is most transparent. It seems simple enough. If your sensor needs 940nm light, you buy a 940nm filter.

Understanding the Shift in Performance

The trouble starts with the manufacturing tolerance. One supplier might offer ±10nm, while a more professional shop keeps it within ±2nm. When an infrared sensor depends on a narrow absorption peak for a certain gas, a 10nm shift can cause real trouble. The signal drifts away from the peak, and the detector loses sensitivity.

Validating Your Specs for Long-Term Stability

Always review the tolerance column on the spec sheet. A tighter tolerance usually shows that the coating team uses closer monitoring during production. The center wavelength must stay steady across the full operating temperature range of the device. If the wavelength drifts with heat, the sensor loses accuracy and the factory calibration becomes unreliable.

Half-Bandwidth: The Trade-off Between Purity and Power

Full width at half maximum (FWHM) tells you how “sharp” the filter is. A very narrow bandwidth acts like a fine-toothed comb. It blocks almost all background light and only lets the target signal through.

Why Narrower Is Not Always Better

Narrower may seem better at first, but the choice is a balance. As the bandwidth shrinks, the total light hitting your detector drops. If your light source is weak or your sensor is noisy, a super narrow filter might starve the system of the signal it needs to function. You have to match the bandwidth to your specific light source and detector sensitivity.

Balancing Throughput with Noise Rejection

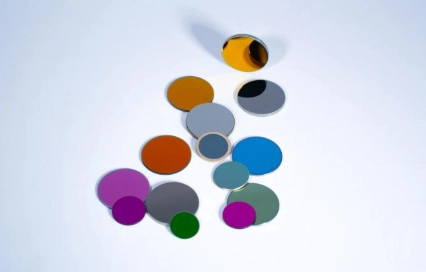

If you are dealing with a strong signal in a dark environment, you can afford a very narrow bandwidth to get perfect purity. However, in daylight or high-noise environments, you need to ensure enough light gets through to overcome the noise floor. Our infrared narrow bandpass filter lineup is designed to give you options that hit that sweet spot between signal isolation and total brightness.

Stopping Unwanted Light: The Role of OD Values

Blocking depth is measured in Optical Density (OD). OD4 means the filter lets less than 0.01% of unwanted light through. OD6 is much darker.

Avoiding Signal Cross-Talk in Gas Detection

People often treat OD as a “nice to have” spec, but it is actually the main reason sensors fail in the field. If you are doing multi-gas detection, the absorption peaks of different gases often sit right next to each other. If your filter doesn’t cut off deep enough in the neighboring zone, those other gases will leak into your reading. This gives you a false high or low, which is a headache to debug.

Inspecting the Full Blocking Range

Also, look at the blocking range. A filter might be OD6 at your target, but completely open at another wavelength where your sensor happens to be very sensitive. Check the full spectral curve to ensure the whole sensitive range of your sensor is protected. Do not settle for just checking the OD value at a single wavelength.

Peak Transmittance: Why the Curve Shape Beats the Number

When comparing products, the peak transmittance percentage is the first number buyers see. They often assume 95% is better than 85%.

Moving Beyond the Peak Value

Do not stop there. A cheap product might have a 95% peak but a very rounded, irregular shape. This means the filter is inefficient at the edges of the bandwidth. A professional-grade filter usually has a flat, “top-hat” shape. This flat top ensures that even if your center wavelength shifts slightly due to temperature or angle, your sensor still gets a strong, steady signal.

The Importance of the Spectral Curve

If the curve is uneven, your detector will receive inconsistent energy levels across the band. This introduces errors that are hard to compensate for with software. A flat, consistent transmission profile ensures that your system remains linear and predictable.

We always provide actual measured spectral curves for our components. The curve shows you the ripple, the slope, and the actual behavior of the filter, which tells you much more than a single percentage point ever could.

Solving Your Engineering Procurement Hurdles

We supply spectral simulation data, material compatibility test results, and optimized coating design feedback to make your development process smoother. We can also offer customized design suggestions, professional installation guidance, and detailed spectral simulation reports to keep your procurement process on track. You can reach out through our contact page for technical support.

FAQ

Q: Does a narrower bandwidth always lead to a worse signal?

A: Not always. It leads to less light, but it also removes more noise. If your target signal is buried in background light, a narrower filter often results in a cleaner, more usable signal despite the lower total intensity.

Q: How do I know if the blocking depth is enough for my application?

A: You need to check the intensity of your background interference. If background light is 1000 times stronger than your signal, you need an OD value that brings that interference below your sensor’s noise floor.

Q: Can I get a filter that matches my specific sensor’s response curve??

A: Yes. Many standard filters work, but for unique gas sensing or laser applications, we often produce tailored optics to align the bandwidth perfectly with the detector’s peak sensitivity.
