Boosting Gas Detection Accuracy in Industrial Systems with Infrared Filters

Gas Detection systems can drift, misread, or trigger false alarms even when the light source, detector, and software appear to be properly selected. One common reason is the infrared filter. If the filter passes the wrong band or does not block enough background radiation, the detector receives a mixed signal instead of a clean target signal. For industrial gas analyzers, fixed safety monitors, and process sensing modules, the filter is not a minor accessory. It defines which infrared signal reaches the detector and directly affects accuracy, response stability, and integration risk.

BoDian Optical focuses on optical coating technology and infrared filter products for sensing, gas analysis, infrared detection, instrumentation, and related optical systems. For buyers building industrial gas monitoring equipment, the practical question is not simply whether a filter can transmit infrared light. The real question is whether the filter matches the target gas absorption band, fits the optical path, and keeps unwanted wavelengths away from the detector.

Why Does Accuracy Depend on Optical Filter Selection?

An infrared gas sensor measures changes in light intensity after infrared radiation passes through a gas path. The detector needs to receive light from the useful absorption band while rejecting wavelengths that do not support the measurement. If the passband is too wide, the detector may read extra background energy. If the passband is shifted away from the target wavelength, the useful signal becomes weak.

Target Gas Absorption Requires Precise Wavelength Control

Each target gas has its own infrared absorption behavior. In a practical sensor module, the filter must be selected around the required detection band instead of a broad infrared range. This is where center wavelength and half bandwidth become important. They decide whether the detector receives the signal that actually matters for the gas being measured.

Blocking Performance Reduces Unwanted Signals

A suitable filter should pass the target absorption band with enough transmittance while suppressing nearby and out-of-band radiation. This helps the detector avoid background infrared energy, source drift, reflected light, and other stray signals that may affect the reading.

This is the practical answer to how infrared filters improve gas detection accuracy: they do not replace the detector or algorithm, but they give the system cleaner optical input.

How Do Infrared Filters Improve Gas Detection Accuracy?

The filter works as a controlled optical gate inside the sensor. It narrows the useful signal range and prevents unrelated wavelengths from entering the detector. In industrial equipment, this matters because the working environment may include heat, dust, vibration, humidity, and mixed gas conditions.

Narrow Passband Transmission for Target Gas Signals

For many Gas Detection modules, Infrared Narrow Bandpass Filter products should be the first category to evaluate. They are designed to transmit a defined infrared band and block wavelengths outside that range. This makes infrared narrow bandpass filters for gas detection suitable for systems focused on a target gas absorption region.

High Transmittance Supports Stronger Sensor Response

Transmittance affects how much useful infrared energy reaches the detector. If transmittance is too low, the signal may become weak and harder to process. A higher useful signal can help the sensor maintain more stable readings, especially in compact modules where optical path length and detector size are already limited.

Out-of-Band Blocking Helps Reduce False Alarms

For teams asking how to reduce false alarms in infrared gas detection systems, blocking range should not be ignored. A filter selected only by center wavelength may still allow unwanted energy to reach the detector. This can lead to unstable readings when the environment changes or when the optical path receives scattered radiation.

Which BoDian Optical Products Fit Industrial Monitoring Needs?

Different gas monitoring systems need different filter combinations. A fixed industrial safety monitor, a gas analyzer, and an OEM sensor module may all use infrared sensing, but their optical path, detector response, and housing design can vary. Buyers should compare the product category with the actual detection task instead of treating all infrared filters as interchangeable.

Infrared Narrow Bandpass Filter as the Core Choice

For target-gas measurement, the narrow bandpass filter is usually the core product. It helps the sensor focus on one useful infrared region instead of collecting unnecessary radiation. This is especially useful for industrial gas detection filters for safety monitoring, where stable alarms and repeatable readings are more important than broad spectral coverage.

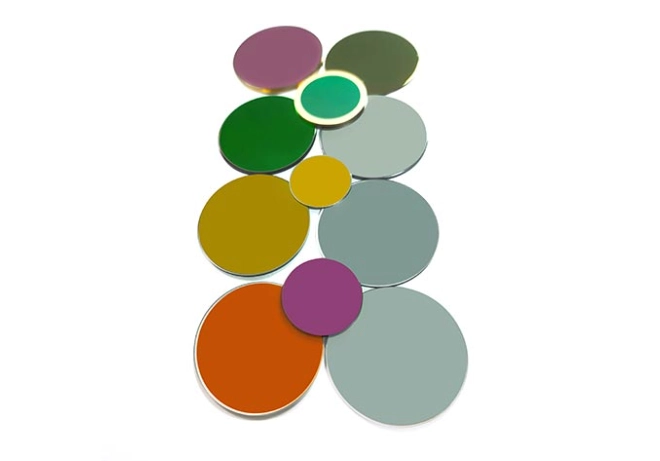

INBP10560 for SF₆ Gas Detection Applications

For SF₆-related infrared sensing projects, SF₆ gas detection filter INBP10560 gives engineers a concrete reference point rather than only a general category name. Its product page lists a GE substrate, CWL 10560±70nm, HPB 240±20nm, Tp ≥90%, and blocking from 400–14000nm with T<1%. These details help the project team check whether the filter curve fits the detector and optical path.

Long Wave Pass and Short Wave Pass Filters for Band Control

The infrared long wave pass filter and infrared short wave pass filter categories should be viewed as supporting options. They are useful when the system needs to cut unwanted wavelength regions before the detector. They do not usually replace a narrow bandpass filter in target gas measurement, but they can help clean up the optical path in a more complete design.

What Mistakes Cause False Alarms or Weak Readings?

False alarms are not always caused by electronics or software. Filter mismatch can create project-level problems that only appear after prototype testing. If the detector receives too much out-of-band energy, the system may respond as if the gas concentration has changed. If the bandwidth is too wide, the signal may become less selective. If the filter does not fit the mechanical structure, the module may need redesign.

Selecting Only by Center Wavelength

A common mistake is to select a filter only by center wavelength and ignore bandwidth or blocking range. Center wavelength tells buyers where the filter is positioned, but it does not fully describe how clean the signal will be.

Ignoring Substrate and Mounting Conditions

The substrate, filter size, surface requirements, and mounting method also matter. A filter with suitable spectral data may still create integration risk if it does not fit the sensor housing or if the assembly method affects the coated surface.

Treating Standard Filters as Universal Parts

Standard filters are useful starting points, but they are not always enough. If the target gas, detector response, optical path length, or housing size differs from the standard design, custom infrared filters for gas detection equipment should be discussed before the mechanical layout is finalized.

What Should Engineers Check Before Placing an Order?

A useful inquiry should include the target gas, expected center wavelength, bandwidth, blocking range, filter size, substrate preference, and mounting condition. Without these details, suppliers can only recommend a general product category. For OEM projects, drawings and module structure information are also helpful because the filter must work inside a real optical path, not only on a specification sheet.

For most target-gas infrared sensing projects, start with an Infrared Narrow Bandpass Filter because the system usually needs to isolate one useful absorption band rather than collect a broad infrared signal. If the project involves SF₆ detection, INBP10560 can be used as a reference model for checking CWL, HPB, substrate, transmittance, and blocking requirements. If the optical path also needs to remove unwanted short-wave or long-wave radiation before the detector, review infrared long wave pass filter or infrared short wave pass filter options as supporting components.

For gas sensing modules, comparing only price and delivery time can lead to rework if the filter curve, substrate, or package size does not match the detector and optical path. A better purchasing process starts with optical matching, then checks mechanical fit, sample validation, and batch supply needs.

Project Support and Contact

If your team is comparing infrared filters for a gas analyzer, fixed safety monitor, or OEM sensor module, prepare the target gas, expected wavelength range, detector type, filter size, and working environment before sending the inquiry. These details help BoDian Optical judge whether a standard product category is enough or whether a custom coating design is needed. For drawings, product matching, or purchasing documents, use the official contact page and describe the module requirement clearly.

FAQ

Q: What type of infrared filter is commonly used for Gas Detection?

A: A narrow bandpass infrared filter is commonly used when the system needs to focus on a target gas absorption band. It helps pass the useful infrared signal and block wavelengths that may add noise.

Q: How should buyers choose a filter for an SF₆ sensing project?

A: Buyers should check whether the filter’s CWL, HPB, substrate, transmittance, blocking range, and size match the detector and optical path. BoDian Optical’s INBP10560 can be used as a reference product for SF₆-related infrared sensing projects.

Q: Should long wave pass and short wave pass filters replace narrow bandpass filters?

A: Usually no. For target gas measurement, the narrow bandpass filter is often the core selection. Long wave pass and short wave pass filters are more suitable for system-level spectral control or for limiting unwanted wavelength regions in the optical path.
