How Do Angle of Incidence and Temperature Affect Infrared Narrow Bandpass Filters?

In an infrared detection system, infrared narrow bandpass filters can meet the required center wavelength, bandwidth, and peak transmittance during reference testing yet behave differently after installation. Angle of incidence, beam geometry, polarization, and operating temperature can all affect the position or shape of the passband. For engineers and B2B buyers, this means filter selection should not stop at CWL and FWHM. The optical layout and working environment need to be defined before the final spectral specification is approved.

BoDian Optical develops optical thin-film products for infrared detection, gas analysis, temperature measurement, imaging, instrumentation, and related systems. Its infrared portfolio includes narrowband, broadband, long-pass, short-pass, and anti-reflection filters. For applications that need to isolate a defined spectral region, BoDian’s infrared narrow bandpass filters can be customized around wavelength, dimensions, and coating requirements. BoDian classifies a filter as narrowband when its half-power bandwidth is within 6% of the center wavelength.

Why Can Narrowband Filter Performance Change After Installation?

A datasheet spectrum is the starting point for filter selection, not a complete description of every operating condition. Once a filter becomes part of an optical assembly, the illumination geometry and environment can change the spectral response seen by the detector.

Center Wavelength, HPB, and Peak Transmittance as the Baseline

The first specifications to check are center wavelength, half-power bandwidth or FWHM, peak transmittance, and blocking range. Together, these parameters define where useful light passes, how selective the spectral channel is, and how strongly unwanted wavelengths are suppressed.

BoDian uses center wavelength, high-transmittance region, blocking region, and peak transmittance as core filter specifications. Transmittance, reflectance, and absorbance can also be measured spectrally to verify how the finished component behaves.

These values should always be connected to test conditions. A CWL measured with a near-normal collimated beam should not automatically be treated as the CWL under a tilted installation or focused beam.

Installation Geometry and Operating Environment

The angle of incidence in optical filters changes the effective optical path through a multilayer coating. A converging or diverging beam adds another variable because different rays reach the filter at different angles.

Temperature can also alter film thickness, refractive index, coating stress, and the relationship between the coating and substrate. These effects are separate from substrate transmission itself. If substrate losses are part of the system transmission budget, additional background on infrared material transparency can help distinguish substrate behavior from coating-induced spectral changes.

How Does Angle of Incidence Affect the Passband?

For infrared narrow bandpass filters, tilt is not simply a mechanical mounting issue. It changes the phase thickness experienced by the incident light and can move the passband away from the wavelength selected during reference testing.

Shorter-Wavelength Shift as AOI Increases

As AOI increases, a conventional narrowband interference filter normally shifts toward shorter wavelengths. The coating effectively presents a smaller optical thickness to the oblique ray, producing a blue shift.

A common engineering approximation is:

λ(θ) ≈ λ₀√[1 − sin²θ / n²eff]

Here, λ₀ is the peak wavelength at normal incidence, θ is the incidence angle, and neff represents the effective refractive index of the filter structure.

This equation is useful for estimating the direction and approximate magnitude of a narrowband filter wavelength shift, but it should not replace verification of a real multilayer coating. The effective index and cavity structure determine how sensitive a particular design is to tilt.

Beam Cone Effects in Converging and Diverging Systems

Many optical systems do not illuminate a filter with one perfectly collimated ray. Near a lens focus, for example, rays can arrive over a range of angles.

This beam cone effect on bandpass filters means that different parts of the beam experience slightly different spectral shifts. Even when the central ray is normal to the filter, off-axis rays encounter different effective optical thicknesses. The combined response can shift toward shorter wavelengths, broaden the effective passband, and reduce peak transmission.

For procurement, a buyer using a filter in a focused optical path should therefore provide beam geometry, cone angle, or F-number where relevant instead of specifying only “normal incidence.”

Polarization Splitting and Passband Distortion at Larger Angles

Angular sensitivity is strongly design-dependent. Some three-cavity structures can retain their passband shape over relatively large incidence angles, while other multi-cavity structures may show serious distortion at only a few degrees of tilt.

For example, one type of multi-cavity filter can show substantial distortion at around 3°, while certain three-cavity structures may remain much more stable and only develop clearly visible polarization splitting at much larger angles, such as around 15°. These values are design examples, not universal AOI limits.

At larger angles, s- and p-polarized light can also respond differently. A useful RFQ question is therefore:

At what AOI and polarization condition are CWL, FWHM, and peak transmittance specified?

For production qualification, the most useful comparison is the measured spectrum at the intended operating angle. If a filter will be installed away from 0°, the acceptance report can compare CWL, FWHM, and peak transmission at both the reference angle and the working angle. This makes the installed requirement directly verifiable.

How Does Temperature Change Narrowband Filter Performance?

Temperature affects infrared narrow bandpass filters through changes in optical thickness and mechanical stress. The amount of movement cannot be assigned one universal value because it depends on the coating materials, deposition structure, substrate, and filter design.

Optical Thickness Changes with Temperature

The optical thickness of a film can be simplified as:

Optical Thickness = n(T) × d(T)

Both the refractive index and physical thickness can change with temperature. Differences in thermal expansion between the substrate and coating can also modify stress and, in turn, the optical properties of the deposited layers.

Film microstructure affects thermal stability as well. Dense energetic-deposition structures can respond differently from more porous thermally evaporated films because void content, column structure, stress, and thermal expansion all influence optical thickness.

Peak Wavelength Drift Depends on the Filter Design

The center wavelength shift with temperature varies from one design to another. Infrared interference-filter designs can show peak-wavelength temperature coefficients of approximately +0.0035%/°C to +0.0125%/°C.

These values are design-dependent examples and should not be treated as specifications for BoDian products. A specific filter may behave differently depending on its materials, film structure, wavelength region, and substrate.

For this reason, infrared filter temperature stability should be defined through measurable acceptance criteria instead of a general statement such as “temperature resistant.”

Temperature Stability Requires Application-Specific Verification

A narrow spectral channel leaves less margin for wavelength movement. If the passband shifts far enough from the target signal or absorption feature, the detector may receive less useful energy even though the filter itself still transmits strongly.

For temperature-sensitive projects, buyers should define the reference test temperature, operating temperature range, allowable CWL movement, and acceptable changes in FWHM or peak transmittance.

What Should Buyers Specify Before Ordering a Narrowband Filter?

Good infrared narrowband filter selection starts with the optical system rather than a catalog description. The supplier needs to know what spectral region must reach the detector and under what geometry and environmental conditions.

CWL, HPB, Peak Transmittance, and Blocking

For infrared narrow bandpass filters, the spectral requirement should normally include target CWL, required HPB or FWHM, minimum peak transmittance, and the blocking range.

BoDian also evaluates dimensions, surface quality, and optical aperture, which matter when a filter must fit a mechanical assembly while preserving a defined usable optical area.

AOI, Beam Geometry, and Polarization

An RFQ should state nominal AOI and, where necessary, the minimum and maximum angle across the optical beam. For converging or diverging systems, cone angle or F-number should also be provided. Polarization conditions become increasingly relevant as incidence angle grows.

This avoids a common integration problem: selecting a filter from a normal-incidence spectral curve and then mounting it in a geometry for which that curve is no longer representative.

Operating Temperature and Acceptance Conditions

The operating range should be connected to measurable optical limits. Buyers can define whether CWL, FWHM, peak transmittance, and blocking need to be checked at a specified reference temperature, across multiple temperatures, or through sample verification.

The same principle applies to AOI. If installation geometry is critical, acceptance testing should reproduce that geometry rather than relying only on a standard normal-incidence measurement.

How Can BoDian Optical Support Application-Specific Filter Projects?

Once the target spectral channel and installation conditions are defined, filter design, coating deposition, measurement, and supplier communication all contribute to whether the finished component fits the system.

Custom Infrared Narrow Bandpass Filter Solutions

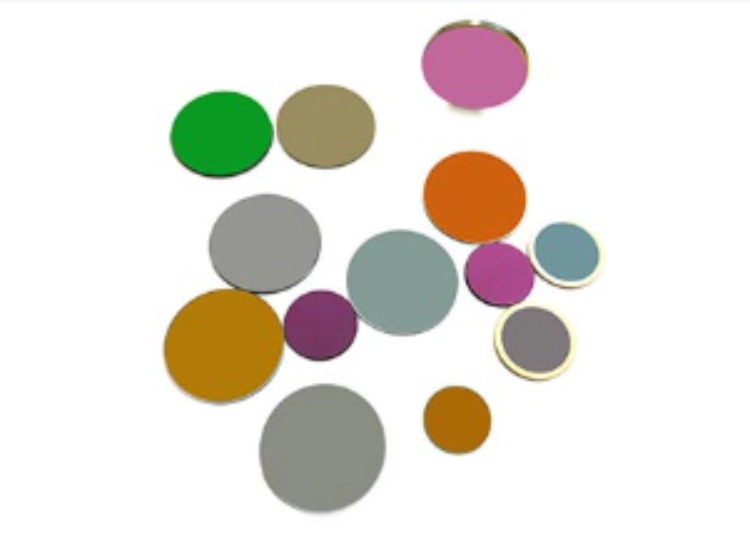

BoDian Optical’s infrared narrow bandpass filters can support gas analysis, infrared detection, sensing, temperature-related instrumentation, imaging, and other systems that need selective spectral transmission.

Customization can cover wavelength, dimensions, and coating design. This is useful when a standard optical component cannot meet the required spectral channel, mechanical envelope, or integration conditions. BoDian can also work from incoming materials, customer samples, and drawings.

Coating and Spectral Testing Capabilities

BoDian has more than 40 years of optical thin-film experience and has participated in more than 20 national research projects. Its manufacturing capabilities include vacuum evaporation and magnetron sputtering, while its measurement resources support transmittance, reflectance, and absorbance testing across ultraviolet, visible, and infrared wavelength regions.

Procurement teams can review more of BoDian Optical’s coating and testing capabilities when evaluating custom filter development and verification requirements.

Technical Service, Sampling, and Contact Support

For a project involving non-normal incidence, a focused beam, defined temperature limits, or tight spectral alignment, the filter specification should be reviewed together with the installation conditions. BoDian can support filter selection, coating-design discussion, sample processing, and drawing-based customization before production requirements are finalized.

A useful project brief includes target CWL, bandwidth, blocking range, AOI, beam geometry, operating temperature, dimensions, and detector requirements. Buyers can contact BoDian Optical with these details to discuss specification review, sampling, and production planning for infrared narrow bandpass filters.

FAQ

Do infrared narrow bandpass filters always shift to shorter wavelengths when tilted?
Conventional interference designs generally shift toward shorter wavelengths as AOI increases because the effective optical thickness decreases. The exact shift depends on the multilayer design and effective refractive index, so the operating angle should be included in the filter specification.

Can temperature change the center wavelength of an infrared bandpass filter?
Yes. Temperature can change refractive index, physical film thickness, coating stress, and the substrate-coating relationship. The resulting drift is design-dependent, so critical applications should define acceptable spectral change over the required temperature range.

What information should I provide when ordering a custom infrared narrowband filter?
Provide the target CWL, HPB or FWHM, peak-transmission requirement, blocking range, nominal AOI, beam geometry, polarization condition if relevant, operating-temperature range, dimensions, and detector or application requirements.
