Thin-Film Optical Filters are used when an optical system must pass a useful wavelength range while reducing light that adds noise, glare, heat, or false signals. This matters in medical sensors, industrial analyzers, infrared cameras, gas detection equipment, and measurement instruments.
BoDian Optical develops custom optical thin-film components for ultraviolet, visible, and infrared applications. It helps buyers match the filter to the source, detector, optical path, and working environment.

Why Does Precise Wavelength Selection Matter across Different Optical Systems?
Each system has a different target signal, but the same rule applies: useful light must reach the detector with as little unrelated energy as possible. Unwanted radiation can raise the baseline, reduce contrast, or make calibration less stable.
Medical Sensors Require Cleaner Optical Signals
Medical equipment may use infrared sensing for non-contact measurement, sample analysis, thermal response, or wavelength-specific detection. Custom optical filters for medical devices should be specified around the actual source and detector rather than the general name of the instrument.
Buyers should confirm that the system is truly infrared-based because fluorescence systems use a different optical layout.
Industrial Detection Depends on Stable Background Rejection
Gas analyzers, process sensors, environmental instruments, and infrared temperature systems often work near hot surfaces, changing ambient light, or overlapping absorption bands. The filter must retain the required signal while rejecting wavelengths that disturb the measurement.
Infrared narrow bandpass filters for gas detection can be designed around a target absorption region. The passband must allow for source variation, detector response, temperature, and production tolerance. The narrowest band is not always the most practical one.
Infrared Imaging Needs Detector-Matched Passbands
Infrared cameras and sensor modules need a passband that matches the detector’s useful response. More infrared energy does not automatically produce a better image because extra radiation may reduce contrast.
Long-wave pass filters for thermal imaging are useful when shorter wavelengths must be removed, but the cut-on point should be selected from the complete optical path rather than the camera type alone.
How Do Thin-Film Optical Filters Control Transmission and Blocking?
The spectral curve comes from the combined behavior of the coating stack and substrate. Buyers should know which parts of the structure affect the specification.
Multilayer Interference Shapes the Spectral Response
A coated filter uses dielectric or metallic layers to control transmission, reflection, and absorption.
In practice, thin-film optical filters are defined by the full layer sequence, substrate, beam angle, and working environment. Passband shape, edge steepness, transmission, and blocking should therefore be reviewed together.
Narrowband and Edge Filters Solve Different Problems
A narrowband filter transmits a defined spectral window. A long-wave pass filter blocks the shorter side and transmits beyond a cut-on point. A short-wave pass filter does the opposite.
BoDian Optical’s technical material classifies a filter as narrowband when its half bandwidth is within 6% of the center wavelength. It does not replace a full specification because tolerances and blocking ranges still differ.
Substrate Windows Limit the Usable Wavelength Range
Optical filter substrate selection should begin with the required transmission window. Infrared substrate options include germanium, silicon, sapphire, calcium fluoride, zinc sulfide, and zinc selenide.
A coating cannot recover a wavelength that the substrate strongly absorbs. Confirm the detector band, thickness, polishing requirement, and sealing method before fixing the substrate.
Which Thin-Film Optical Filter Fits Each Detection Requirement?
First, determine the direction of the light that you want to keep out of the room: a single window, the long-wavelength end of the room, or the short-wavelength end of the room.
Infrared Narrow Bandpass Filters for Targeted Signal Detection
Infrared Narrow Bandpass Filters are used for Gas Analysis, Active Infrared Sensing, fixed measurement channels and many other applications where a specific wavelength region has to be isolated. The center wavelength of a filter should always refer to the absorption feature of the target gas, not to a generic application name. While strong CO2 absorption lines are found in the region of 4.26 µm, Methane is commonly detected at 3.3 µm. The final passband of a filter also has to match the spectrum of the source, the detector response, temperature, humidity and other influences as well as absorption by other gases.
Medical sensing follows the same rule. Pulse oximetry commonly compares red light near 660 nm with near-infrared light near 940 nm. A filter specification must therefore match the complete optical channel rather than the device category alone.
For an NDIR project, buyers should provide the target gas, source, detector, gas-cell conditions, reference channel, and possible interfering species.
BoDian Optical’s knowledge materials describe high-precision designs with peak transmittance above 90% and deep blocking at OD6 or above. These figures should be treated as project-specific design targets, not automatic values for every part. An RFQ should state the center wavelength, FWHM, minimum transmission, blocking interval, optical density, and angle of incidence.

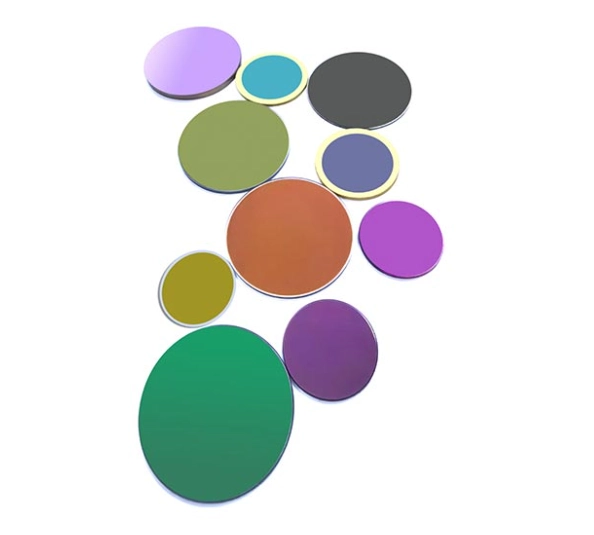

Infrared Long-Wave Pass Filters for Short-Wavelength Rejection
Infrared Long-Wave Pass Filters suit systems that must reject shorter wavelengths while retaining the longer infrared region.
Uses include infrared imaging, thermal sensing, night vision, surveillance, and analytical instruments. Buyers should focus on the cut-on position and transition shape. A filter with the right product name can still be unsuitable if its edge overlaps the detector’s useful band.

Infrared Short-Wave Pass Filters for Long-Wavelength Suppression
Infrared Short-Wave Pass Filters are used when the required signal lies below a selected cut-off and longer-wavelength radiation must be suppressed.
Short-wave pass filters for infrared sensors can limit detector range, reduce thermal background, or separate adjacent channels.
| Detection Need | Product Direction | Main Specification |
| Isolate one target wavelength region | Infrared Narrow Bandpass Filters | Center wavelength, FWHM, blocking range |
| Remove shorter-wavelength interference | Infrared Long-Wave Pass Filters | Cut-on point, transition slope, passband |
| Suppress longer-wavelength background | Infrared Short-Wave Pass Filters | Cut-off point, blocking depth, detector match |
What Specifications Should Buyers Define before Requesting a Custom Filter?
A useful quotation requires more than a product category and diameter. The supplier needs enough information to judge feasibility and define testing.
Center Wavelength, Bandwidth, and Peak Transmittance
For a bandpass design, state the target center wavelength, acceptable tolerance, FWHM, minimum peak transmission, source spectrum, and detector response.
A narrower passband can improve signal isolation but increase sensitivity to source drift, temperature, and incidence angle. The correct balance depends on the instrument.
Blocking Range, Optical Density, and Incidence Conditions
Blocking should be defined across a wavelength interval, not at one point. State the minimum optical density, permitted leakage, beam angle, and whether the light is collimated or converging.
Strong target transmission is not enough if out-of-band light still reaches the detector. The mounting angle may also shift the spectral response, so acceptance tests should reflect the intended optical layout. As the angle of incidence increases, an interference filter normally shifts toward a shorter wavelength. A first-order estimate is:
λθ = λ0 × √[1 − (n0²/neff²)sin²θ]
The actual shift should still be calculated from the final coating design. In a converging beam, different ray angles may also broaden the passband, reduce edge steepness, and separate the responses of s- and p-polarized light.
A complete RFQ should state the working AOI, angular range, cone angle or optical f-number, polarization, and operating temperature. Buyers should also confirm whether the acceptance spectrum will be tested at normal incidence or at the installed angle. Do not offset blue shift by simply ordering a longer nominal wavelength without coating-model verification.
Substrate, Clear Aperture, Size, and Surface Quality
Specify outer dimensions, thickness, tolerance, clear aperture, surface quality, edge condition, polishing, and mounting or sealing requirements.
A larger clear aperture must remain compatible with coating uniformity and the holder. Drawings are usually more reliable than text-only descriptions for custom parts.
How Can BoDian Optical Support Custom Filter Development and Procurement?
A custom filter project moves more smoothly when optical design, coating, testing, and mechanical requirements are reviewed as one package.
Application-Matched Filter Design
BoDian Optical can adjust wavelength position, passband width, cut-on or cut-off location, blocking depth, substrate, dimensions, clear aperture, and coating structure. Provide the source spectrum, detector range, incidence angle, working temperature, and expected quantity.
For thin-film optical filters, the application name is only a starting point. A gas detector, thermal camera, and medical sensor can all use infrared light while requiring very different spectral curves.
Coating Control and Spectral Verification
The production flow includes substrate preparation, polishing, coating, and spectral inspection. Vacuum evaporation and magnetron sputtering are used for deposition, while spectral equipment measures transmission, reflection, and absorbance.
Ask how samples will be measured, which points define acceptance, and whether the same test conditions will be used for later batches.
Service, Sampling, and Contact
BoDian Optical supports processing from drawings, supplied samples, and customer materials, along with customized substrates, dimensions, and spectral requirements. A complete request should include the application, source and detector data, transmission and blocking regions, incidence angle, size, environment, and estimated volume.
Thin-Film Optical Filters work best when the optical specification and mechanical package are reviewed together. Narrow bandpass, long-wave pass, and short-wave pass products solve different problems, so the buying decision should follow the unwanted wavelength direction, detector response, and installation conditions.
For projects with uncertain passband width, substrate choice, blocking depth, or test conditions, use the contact page to send drawings, target curves, detector data, or sample requirements. This gives the technical team enough information to judge feasibility and recommend a suitable filter structure.
FAQ
Q: How do Thin-Film Optical Filters improve measurement accuracy?
A: They limit the wavelengths reaching the detector, which can reduce background radiation, spectral overlap, and false response. The improvement depends on matching the passband, blocking range, substrate, and incidence angle to the system.
Q: Should I choose a narrow bandpass filter or an edge filter?
A: Choose a narrow bandpass filter when one defined wavelength region must pass. Choose a long-wave pass filter when shorter wavelengths must be blocked, and a short-wave pass filter when longer wavelengths must be suppressed.
Q: What information should I send for a custom filter request?
A: Provide the target application, source spectrum, detector response, transmission region, blocking region, angle of incidence, dimensions, substrate preference, operating environment, and expected quantity.
