What Role Do Infrared Filters Play in Medical Imaging and Physiological Monitoring

Medical imaging and physiological monitoring depend on weak optical signals that can be easily disturbed by ambient light, tissue scattering, and unwanted wavelengths. This is why Narrow Bandpass Filters matter in medical optical design. They help a sensor receive the selected infrared signal instead of a mixed optical background.

BoDian Optical specializes in optical coating technology and thin-film optical filter production. Its product range covers ultraviolet, visible, and infrared wavelengths, including infrared narrowband filters, infrared long wave pass filters, infrared short wave pass filters, and anti-reflection filters. For medical device builders, this matters because filter selection is rarely about buying a standard glass part. It usually involves matching wavelength, substrate, coating structure, size, and testing requirements to a real optical module.

Why Do Medical Imaging and Monitoring Devices Need Cleaner Infrared Signals?

Infrared filters are used in medical systems because the useful signal is often narrow, weak, or hidden under unwanted light. A camera, detector, or sensor may receive light from the target tissue, the room, the device housing, and reflections inside the optical path. Without proper filtering, the final signal may look brighter, but less reliable.

Infrared Light Carries Tissue and Physiological Information

Near-infrared light is useful in many medical optical systems because it can support tissue observation and physiological signal capture. In vascular imaging, tissue inspection, and blood oxygen related monitoring, the goal is not simply to collect more light. The goal is to collect the right infrared band that carries useful information.

For this reason, medical near-infrared imaging filters are often selected around a target wavelength window. The filter helps the detector focus on the intended optical response instead of receiving a broad mix of wavelengths.

Unwanted Light Can Reduce Image and Signal Accuracy

A medical optical system can fail quietly. The image may still appear visible, but contrast may be unstable. A sensor may still output data, but the baseline may drift. These problems often come from stray light, reflected light, and wavelength leakage.

This is where infrared filters become a system-level component rather than a simple accessory. They protect the detector from signals that do not belong in the measurement channel.

Filters Help Separate Useful Signals from Optical Noise

A good filter does not make the biological signal stronger by itself. It improves the chance that the detector receives the intended signal cleanly. For device engineers, this helps reduce repeated calibration, unstable imaging, and unexplained variation between test conditions.

How Do Narrow Bandpass Filters Support Medical Imaging?

Narrow Bandpass Filters are one of the primary components for a medical imaging device that needs to isolate a specific infrared wavelength. Instead of a broad band of light passing through to the sensor, a controlled bandpass is allowed to pass through.

Target Wavelength Selection for Near-Infrared Imaging

In near-infrared imaging the wavelength selection has two main functions: what you can see with your system and how clearly the detector is able to distinguish between the signal of the tissue and the background light. A narrowband filter is typically specified by center wavelength, bandwidth, transmittance and blocking range.

BoDian Optical’s Infrared Narrow Bandpass Filter is suitable for medical near-infrared imaging filters where the optical channel must be tightly controlled. It can be considered for vascular observation modules, tissue imaging systems, and sensor-based medical detection designs.

Higher Signal Contrast in Vascular and Tissue Observation

In medical imaging, contrast is often more valuable than brightness. If the wrong wavelengths reach the sensor, the image may become washed out or inconsistent. Narrowband filtering helps reduce that problem by limiting the detector input to a more relevant spectral region.

For procurement teams, Narrow Bandpass Filters should be evaluated not only by whether the wavelength is “close enough,” but also by how well the filter blocks unwanted regions outside the passband.

Reduced Interference from Visible and Ambient Light

Many medical imaging systems must operate near visible lighting, displays, or reflective surfaces. If the device is designed for near-infrared signal detection, visible light leakage can reduce measurement stability.

In these cases, a narrowband filter can be used together with an infrared long wave pass filter. The long wave pass filter blocks shorter wavelengths and helps build a cleaner infrared channel before the narrowband filter performs more selective wavelength control.

Where Can Infrared Filters Be Used in Physiological Monitoring?

Physiological monitoring devices often read changes rather than static images. That makes optical stability even more important. Small signal changes may be meaningful, so the filter must support repeatable detection across device batches and use conditions.

Blood Oxygen and Tissue Signal Detection

Blood oxygen and tissue-related optical monitoring depend on selected wavelength response. A filter that passes too broad a range may allow unrelated light into the detector, while a poorly blocked filter may create signal contamination.

For these systems, Narrow Bandpass Filters help define the measurement channel. Buyers should check whether the supplier can discuss center wavelength, passband width, blocking area, and test data rather than only product diameter and thickness.

Non-Contact or Low-Interference Monitoring Modules

Non-contact monitoring modules often work with low signal levels. Any extra reflection, housing leakage, or environmental light can affect the final reading. Filters used in these modules need stable coating behavior and suitable surface quality, especially when the optical path is compact.

BoDian Optical can support custom optical filters for medical devices when standard sizes or wavelengths do not match the module design.

Healthcare Devices Requiring Stable Infrared Response

Healthcare equipment may use infrared channels for imaging, sensing, temperature-related detection, or monitoring. In such systems, filter repeatability matters during both prototype testing and later procurement.

One filter can work in a sample but then alter in production. In order to integrate the filter in the correct manner, the buyer should request for the optical curves of the filter and verify the required test conditions to approve a batch of filters.

How Should Buyers Choose Narrow Bandpass Filters for Medical Devices?

When choosing Narrow Bandpass Filters for medical applications one has to start from the optical problem at hand instead of looking for a name in a catalog. The crucial questions are: What signal one wants to have enter the detector and what signal one wants to block?

Center Wavelength, Bandwidth, and Peak Transmittance

The center wavelength should match the medical detection task. Bandwidth should be narrow enough to isolate the target signal, but not so narrow that normal system tolerance causes signal loss. Peak transmittance should be checked through measured curves, not assumed from a product title.

Blocking Depth, Optical Aperture, and Surface Quality

Blocking depth affects how much unwanted light is rejected outside the passband. Optical aperture matters because the usable clear area must fit the actual light path. Surface quality also matters in imaging devices because scratches, chips, or coating defects can appear as noise or uneven brightness.

Custom Size, Substrate, and Coating Design

Medical devices often require non-standard filter dimensions. Some designs need silicon, germanium, zinc sulfide, calcium fluoride, or other suitable infrared substrates, depending on wavelength and system structure. Coating design should be matched to the detector, light source, housing design, and expected use environment.

For medical infrared filters, the coating process should not stop at achieving the target spectral curve on paper. The film stack must also remain stable after assembly, handling, and normal device operation. In practical production, this means the substrate surface needs proper preparation before coating, because dust, residue, or poor polishing can weaken film adhesion and increase scattering. During deposition, layer stress and material matching also need attention. If the coating structure is not well balanced, temperature changes inside the device may cause slight spectral drift, edge shift, or unstable blocking performance. For this reason, BoDian Optical’s custom filter discussion should include not only center wavelength and bandwidth, but also substrate choice, coating method, surface condition, expected working environment, and post-coating spectral verification. This process-based review helps medical device teams avoid filters that pass an early sample test but become unstable during integration or batch use.

Which BoDian Optical Filter Products Fit Medical Imaging Projects?

BoDian Optical’s product selection fits projects where infrared signal control is part of the medical device design. The key is to use each filter type for the right function instead of treating all infrared filters as interchangeable.

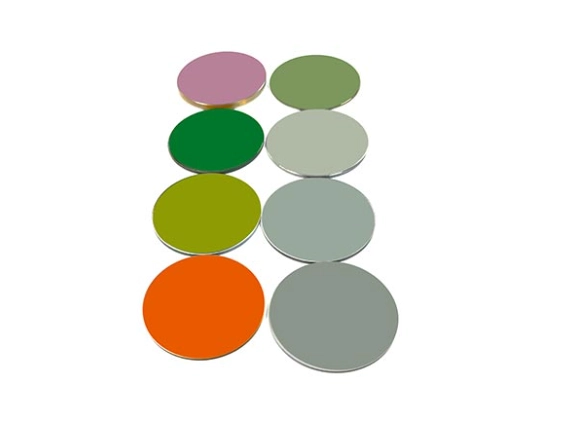

Infrared Narrow Bandpass Filter for Precise Signal Capture

The Infrared Narrow Bandpass Filter should be the main product for this topic. It is suitable for medical imaging and physiological monitoring devices that need defined wavelength selection, cleaner signal capture, and reduced out-of-band interference.

Infrared Long Wave Pass Filter for Visible Light Blocking

The Infrared Long Wave Pass Filter is more suitable as a supporting product. It helps block visible or shorter wavelength light while allowing infrared light to pass. In a medical imaging module, it can be used before more selective filtering or in systems where the key need is to separate infrared light from visible light.

Custom Optical Filter Service for Device Integration

BoDian Optical also supports custom optical filter service based on project requirements, samples, or drawings. This is useful when a device maker needs a specific size, wavelength band, substrate, or coating design that cannot be solved with a standard part.

Service and Contact

Filter Selection Support for Medical Optical Systems

Medical optical projects often start with uncertain details: wavelength range, detector type, working distance, or available space inside the device. A supplier should help convert these details into filter specifications, not only send a catalog.

Custom Samples Based on Drawings or Requirements

For prototype work, drawings and optical requirements are often more useful than general product names. BoDian Optical can review size, substrate, coating, and spectral testing needs before sample preparation.

Contact BoDian Optical for Project Evaluation

If your team is comparing infrared filters for medical imaging or physiological monitoring, prepare the target wavelength, required size, detector type, and expected blocking range. Sharing these details through the contact page can help the technical team judge whether an infrared narrow bandpass filter, an infrared long wave pass filter, or a custom coating design is more suitable.

FAQ

Q: Are Narrow Bandpass Filters better than long wave pass filters for medical imaging?
A: They solve different problems. Narrow Bandpass Filters are better when the system must isolate a specific wavelength band. Long wave pass filters are better when the main task is blocking visible or shorter wavelength light while allowing infrared light to pass.

Q: What specifications should buyers confirm before ordering infrared filters for medical devices?
A: Buyers should confirm center wavelength, bandwidth, peak transmittance, blocking range, filter size, optical aperture, substrate, surface quality, and testing requirements. For medical imaging and physiological monitoring optical filters, measured spectral curves are especially useful.

Q: Can one infrared filter work for all medical monitoring devices?
A: Usually no. Different monitoring devices use different wavelength ranges, detector structures, and optical paths. Narrow Bandpass Filters should be selected according to the actual signal channel, not chosen only by product category name.
