From Defense Imaging to Smart Homes How Infrared Filters Power Modern Sensing Devices

A security camera may lose contrast at night, a smart home sensor may trigger at the wrong time, and a gas detection module may miss a weak absorption signal. In many cases, the problem is not the detector itself but the filter in front of it. Infrared Filters control which wavelengths enter the optical path, helping sensing devices separate useful infrared signals from background interference. For engineers and purchasing teams, choosing the right filter means fewer sample revisions, cleaner test data, and a better match between the optical design and the final device.

BoDian Optical manufactures optical thin film components for infrared detection, optical imaging, scientific instruments, medical equipment, environmental sensing, and security applications. Its infrared filter range includes long wave pass, short wave pass, and narrow bandpass options, so buyers can compare different filter structures according to wavelength range, substrate, blocking demand, and device application instead of selecting from a single product type.

Why Do Modern Sensing Devices Need Infrared Filters?

Most sensing modules receive infrared energy, visible light leakage, reflected light, and background radiation at the same time. The useful part may come from a heat source, a gas absorption band, or a target object; the rest may reduce contrast or cause unstable readings. This is why infrared filters for modern sensing devices should be selected according to the target signal, not only according to the product category.

Target Signal Separation

A filter helps define what the detector should receive. A human body sensing module, a thermal radiation measurement system, and a gas detection device may all use infrared light, but they usually need different wavelength ranges. If the filter band is too wide, the sensor may receive too much background radiation. If the band is too narrow or misplaced, the useful signal may become weak.

Lower Background Interference

Unwanted wavelengths can reduce image clarity, disturb the detector, or make test data harder to repeat. A suitable filter blocks light outside the required range and keeps the sensor response closer to the actual target signal. For product engineers, this can make prototype testing more efficient because the optical signal becomes easier to judge.

Easier Module Integration

Filter selection is also a mechanical and production decision. The filter must fit the optical path, match the detector window, meet size requirements, and stay stable in the expected working environment. A filter may match the housing size but still fail the project if its passband, blocking range, or substrate does not match the detector.

How Do Filters Support Defense Imaging and Optical Monitoring?

Defense imaging and field monitoring systems often work in complicated light conditions. The optical path may need to manage reflected light, thermal radiation, and background infrared interference at the same time. In defense imaging systems, infrared filters help control background radiation and keep the detector focused on the required band.

Optical Imaging with Controlled Bands

In optical imaging systems, extra long-wave infrared energy can affect image clarity or create unwanted background response. A short wave pass filter is useful when the system needs shorter infrared wavelengths to pass while longer wavelengths are reduced. This is relevant for optical instruments, monitoring systems, and equipment used in demanding field environments.

ISP12750 for Short Wave Pass Control

For optical imaging projects that need short wave pass control, BoDian Optical’s ISP12750 is more relevant than a general infrared filter because its product direction matches optical imaging, military security, scientific research, and optical instruments. It can be considered when a project needs to transmit a defined shorter infrared range while reducing longer-wavelength interference.

Before confirming this type of filter, buyers should check the sensor response range, required blocking band, incident angle, mounting space, and test conditions. In defense imaging or optical monitoring, the cost of a wrong filter is not only a failed sample. It may also cause unclear images, unstable field testing, or repeated redesign of the optical path.

Practical Selection Checks

A purchasing engineer should ask for the spectral curve, working band, and blocking range before confirming a filter. If the system is used outdoors or in a field-deployed device, the buyer should also discuss substrate choice, coating durability, and whether the filter size can be customized for the module housing.

How Can Filters Improve Smart Homes and Security Sensing?

Smart home devices are becoming more sensitive, but sensitivity alone is not enough. A smart lock, indoor presence sensor, security monitor, or temperature detection device must avoid false triggers. Smart home sensors use infrared filters to improve human presence detection, temperature sensing, and security monitoring stability.

Human Body Sensing

Human body sensing depends on detecting useful infrared information from people in a room, doorway, or monitored area. If the filter lets too much unrelated light reach the detector, the system may become unstable. If the filter blocks too much useful light, the device may lose sensitivity. This is why the filter must be matched with the detector and the actual sensing distance.

ILP5500 for Long Wave Infrared Detection

For smart home sensing and security monitoring, ILP5500 is easier to match with heat-related detection tasks because its application direction includes temperature detection, human body sensing, security monitoring, and thermal radiation measurement systems. It is a long wave pass filter for projects that need longer infrared wavelengths while reducing shorter-wavelength interference.

This product fits articles and projects related to smart home safety because the application is clear: heat-related detection, monitoring, and infrared sensing. It should not be selected only because it is an infrared product. It should be selected when the device actually needs long-wave infrared signal control.

Security Monitoring Modules

In a security monitoring module, the filter should be selected together with the detector and lens. Buyers should check whether the device needs long wave infrared transmission, short wave control, or a narrow passband. This step matters because a physically suitable filter can still perform poorly if the optical band does not match the sensing target.

Which Filter Works for Gas Detection and Precision Sensing?

Gas detection and precision sensing are different from broad imaging. These systems often look for a specific infrared absorption feature. For a gas detection module, an infrared narrow bandpass filter for gas detection is usually more suitable than a broad pass filter because it isolates a defined absorption band.

Narrow Band Selection

A narrow bandpass filter allows a defined wavelength band to pass and blocks nearby unwanted bands. This is useful when the sensor must detect a specific gas or monitor a narrow infrared signal. It can help improve selectivity, especially when the device works in an environment with mixed background radiation.

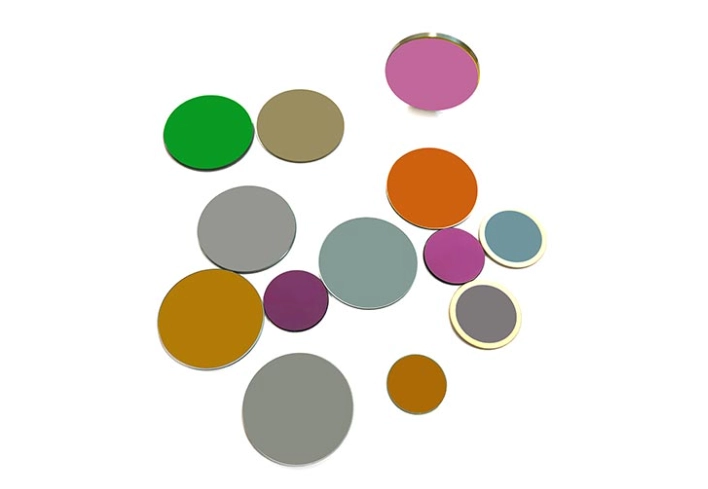

Infrared Narrow Bandpass Filter Series

BoDian Optical’s Infrared Narrow Bandpass Filter series is suited for gas detection, environmental monitoring, and precise sensor modules. Compared with a long pass or short pass filter, a narrow bandpass filter is more focused. It is chosen when the target signal is tied to a narrow wavelength range rather than a wide infrared region.

For procurement teams, the starting point should be the gas type or target signal. Then confirm the center wavelength, half bandwidth, transmission level, blocking depth, substrate, diameter, thickness, and batch consistency.

Custom Matching for Device Design

If your product is still in prototype testing, do not select the filter only from a product name. Share your detector model, target wavelength, optical path structure, and expected operating environment with the supplier. This makes filter matching faster and reduces repeated sampling.

How Should Buyers Choose Infrared Filters for Real Projects?

For teams asking how to choose infrared filters for sensing modules, the answer starts with the application, then moves to the wavelength and mechanical design. A filter for optical imaging may not work for human body sensing. A filter for thermal detection may not be precise enough for gas detection.

A simple way to narrow the choice is to match the filter type with the job of the device. Use ILP5500 when the system focuses on long-wave infrared detection, human body sensing, temperature detection, or security monitoring. Use ISP12750 when the optical path needs short wave pass control for imaging, military security, scientific research, or optical instruments. Use an Infrared Narrow Bandpass Filter when the device must isolate a specific infrared absorption band, especially in gas detection or environmental sensing.

Start from the Application

For defense imaging, look at band control and blocking of unwanted infrared radiation. For smart homes, focus on stable human presence detection and temperature-related sensing. For gas detection, focus on narrow band matching. For general security monitoring, check whether the system needs long wave pass, short wave pass, or narrow bandpass filtering.

Confirm the Specifications Early

Before asking for samples, prepare basic information: target wavelength, passband, blocking range, detector type, working temperature, angle of incidence, product size, and expected quantity. Do not judge a filter only by peak transmittance. Blocking depth, band position, coating stability, and mechanical tolerance often decide whether the module works consistently.

Common Selection Mistakes to Avoid

One common mistake is choosing a filter only by product category. A long wave pass filter, short wave pass filter, and narrow bandpass filter may all belong to infrared optical components, but they solve different problems. Another mistake is checking the passband but ignoring the blocking range. In real sensing modules, light outside the useful band may still reach the detector and disturb the signal. Buyers should also avoid confirming the filter size before checking the angle of incidence and mounting method, because these details can affect final optical performance and assembly stability.

Project Support and Contact

When planning a project that requires Infrared Filters for a new sensing module, a new camera system, a new security system or a new gas detection system, it is wise to have a clear idea of the wavelength range to be filtered, the detector that is used behind the filter, a drawing of the system and a test target before you contact BoDian Optical. This allows it to judge if an ILP5500, an ISP12750 or an Infrared Narrow Bandpass Filter is best for your application

FAQ

Q: What Are Infrared Filters Used for in Sensing Devices?
A: Infrared filters are used to control the infrared wavelengths that are detected. The filters are used to keep unwanted light out of the detector, improve the signal to noise ratio, and to enable applications such as defense imaging, smart home sensing, temperature sensing, surveillance monitoring, and gas detection.

Q: Should I Choose a Long Wave Pass, Short Wave Pass, or Narrow Bandpass Filter?
A: Choose a long wave pass filter when you need longer infrared wavelengths for heat-related detection. Choose a short wave pass filter when you need to block longer infrared interference. Choose a narrow bandpass filter when your device must detect a specific infrared signal, such as in gas sensing.

Q: What Information Should I Prepare Before Ordering a Custom Infrared Filter?
A: Before ordering a custom Infrared filter, you should have the following information ready. The supplier will use this information to match your custom Infrared filter to your real optical system instead of just matching a catalog name. The information are: target wavelength, passband, blocking, detector, size of filter, substrate required, working environment.
