How a Fluorescence Endoscopy Filter Helps Eliminate Stray Light Interference in Advanced Systems

A fluorescence endoscopy image can lose contrast even when the camera and light source look acceptable on paper. Excitation leakage, tissue reflection, lens surface reflection, and weak fluorescence return may reach the detector together. Once that happens, the image may become bright but unclear. A fluorescence endoscopy filter helps control what enters the imaging path, so the camera receives the useful fluorescence band instead of mixed stray light.

BoDian Optical works with optical filters and coating products for infrared sensing, imaging, detection, and instrument systems. For medical and fluorescence-related optical modules, filter selection should not stop at wavelength alone. Buyers also need to check passband width, blocking range, transition edge, angle of incidence, coating quality, size, and real assembly space. In many compact modules, the filter has to match the emission band, mounting angle, clear aperture, and available thickness at the same time.

Why Does Stray Light Interference Hurt Fluorescence Endoscopy Images?

Fluorescence endoscopy depends on a weak signal. The system sends excitation light to the target area, then collects fluorescence emission through an imaging channel. If unwanted light enters that same channel, the image may show background glow, low contrast, or unclear signal boundaries.

Excitation Leakage Into the Emission Path

Excitation light is usually much stronger than the returned fluorescence signal. If part of that excitation light leaks into the emission path, the detector may receive both the target signal and unwanted background. This is one reason stray light interference in fluorescence endoscopy is difficult to solve only by camera adjustment.

Reflection From Lenses, Windows, and Tissue Surfaces

Stray light may also come from internal optical surfaces. Lens edges, protective windows, filter surfaces, and tissue reflection can all send unwanted light back toward the sensor. If the filter stack is not matched well, the system may still show haze after electronic tuning.

Weak Signal Contrast After Assembly

A filter may look acceptable as a separate part, but the assembled module can tell a different story. A compact lens group, tilted filter position, front window, or short working distance may change how light reaches the detector. This is why filter selection should be checked in the full optical layout.

How Does a Fluorescence Endoscopy Filter Control the Imaging Path?

In this type of system, the filter is part of the imaging path, not a simple cover glass. It allows the required emission band to pass and blocks light that should not reach the camera.

Target Fluorescence Band Selection

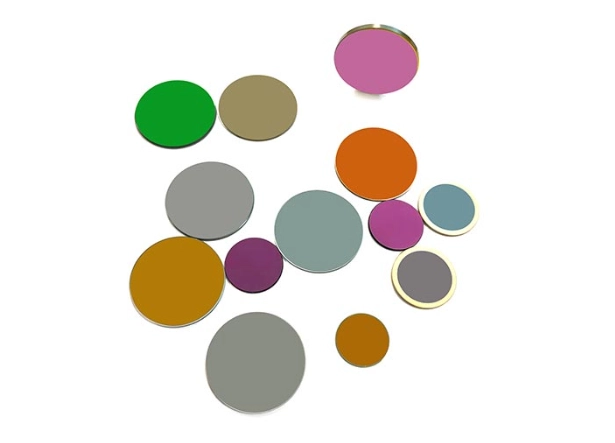

For the emission path, Custom Bandpass Filters, Including Narrowband Designs are the first product direction to review when the system needs controlled wavelength selection. A bandpass filter supports a defined wavelength range. A narrowband design can be used when the target signal band must be tighter. For a fluorescence endoscopy optical filter, the passband should follow the emission range and camera response, not a random catalog wavelength.

Out-of-Band Blocking

Passing the target band is only one side of the job. The harder part is often stopping nearby excitation leakage and out-of-band background light. A fluorescence endoscopy filter with high blocking requirements is usually needed when the module has strong excitation energy, a compact optical path, or strict contrast requirements. This should be treated as a blocking requirement, not as a fixed product name.

Matching the Real Module Layout

Angle of incidence, filter position, front window material, lens coating, and sensor distance may change the final result. Before confirming a fluorescence endoscopy filter, buyers should check how the light reaches the filter inside the assembled module.

How Should Buyers Choose an Optical Filter for Fluorescence Endoscopy System Design?

An optical filter for fluorescence endoscopy system design should be selected from the optical path backward. Start with the target signal, then check the light source, camera response, mechanical space, and sample test method. The filter should fit the module, not force the module to fit the filter.

Excitation and Emission Wavelengths

Buyers should prepare the excitation wavelength range and the expected emission wavelength range first. If the emission band sits close to the excitation band, the filter needs a sharper transition and stronger out-of-band control. If the bands are well separated, the design may be easier, but blocking still needs review.

Passband Width and Transition Edge

A wider passband can collect more signal, but it may also allow more background light. A narrowband design can improve spectral selectivity, but it may be more sensitive to angle shift and assembly tolerance. The right choice depends on the real signal gap and the detector response.

Size, Angle, and Assembly Tolerance

Endoscopy modules are compact. Small changes in filter thickness, clear aperture, edge treatment, or mounting angle may affect the optical path. For custom work, drawings or sample housings are often more useful than a short text request.

Common Filter Selection Mistakes

One common mistake is choosing the filter only by the emission wavelength and ignoring excitation leakage nearby. Another is asking for the narrowest passband without checking signal strength, angle shift, and camera response. In compact fluorescence endoscopy modules, buyers should also avoid checking the filter as a separate part only. The final review should include the real light source, lens group, window material, detector range, and installed angle.

When Are Long Pass and Short Pass Edge Filters Needed?

A bandpass filter is often the main part for fluorescence signal selection, but some systems need more than one filter type. Long Pass and Short Pass Edge Filters can be discussed as supporting parts when the optical path needs a clear cut-on or cut-off boundary.

Long Pass Filters for Blocking Shorter-Wavelength Light

A long pass filter may be used when shorter-wavelength excitation light needs to be blocked while longer-wavelength emission light passes. This can support the emission path when the target fluorescence is located at a longer wavelength than the excitation source.

Short Pass Filters for Reducing Longer-Wavelength Background

A short pass filter works in the opposite direction. It can reduce unwanted longer-wavelength background before it reaches the detector. This may be useful when the camera is sensitive beyond the target fluorescence range.

Combined Filter Layouts

Some advanced modules use a bandpass filter together with edge filters. The bandpass or narrowband filter defines the target signal window, while the edge filter adds broader blocking support. This layout should be checked with the full light path, not only with one part number.

How Should Buyers Discuss Custom Fluorescence Filter Requirements With BoDian Optical?

For a custom fluorescence endoscopy filter, the supplier needs more than a target wavelength. The design should consider the module’s optical structure, working angle, blocking range, size tolerance, coating requirements, and sample approval method.

BoDian Optical’s Custom Bandpass Filters, Including Narrowband Designs can be reviewed for modules that need controlled wavelength selection in fluorescence or infrared-related imaging paths. If the system also needs a defined cut-on or cut-off boundary, Long Pass and Short Pass Edge Filters may be discussed as supporting parts.

For most fluorescence endoscopy modules, Custom Bandpass Filters, Including Narrowband Designs should be reviewed first when the main task is to separate the target fluorescence signal from excitation leakage and background light. Long Pass and Short Pass Edge Filters are more suitable as supporting parts when the system needs a clearer cut-on or cut-off boundary. If the main issue comes from weak light source output, poor camera sensitivity, or mechanical misalignment, the filter can improve stray light control, but it should be checked together with the full optical path.

Project Communication and Contact

If your module still shows haze, background glow, or low fluorescence contrast after camera and light source adjustment, the filter stack may need a closer review. Before using the website contact page, prepare the excitation band, emission band, detector range, filter drawing, installed angle, and sample requirements. These details help judge whether a standard bandpass direction is enough or whether a custom filter design is needed.

FAQ

Q: What does a fluorescence endoscopy filter do?

A: A fluorescence endoscopy filter controls which wavelengths reach the camera. It helps pass the target fluorescence signal while reducing excitation leakage, reflected light, and background light that can lower image contrast.

Q: Is a bandpass filter enough for fluorescence endoscopy?

A: Sometimes yes, but not always. If the emission band is clear and the blocking demand is moderate, a bandpass filter may work. If stray light is still strong, the system may need a narrowband design, stronger blocking, or support from Long Pass and Short Pass Edge Filters.

Q: What information is needed for a custom fluorescence endoscopy filter?

A: Buyers should prepare the excitation wavelength, emission wavelength, camera response range, filter size, thickness limit, angle of incidence, and working layout. For a custom fluorescence endoscopy filter, drawings or sample parts can help confirm whether the optical design can fit the module.
