How Do Infrared Filters Improve Gas Detection, Non-Contact Temperature Measurement, and Thermal Imaging?

Gas sensors, infrared thermometers, and thermal cameras do not need every wavelength reaching the detector. They need the part of the spectrum that carries useful information. Infrared filters improve the signal path by transmitting the required band and suppressing radiation that can cause drift, weak contrast, or false readings. The filter must match the target, detector, lens, incidence conditions, and operating environment.

Why Do Different Infrared Applications Require Different Spectral Control?

These applications all receive infrared radiation, but they use it differently. A gas analyzer looks for a molecular absorption feature. A point thermometer converts radiation from a defined field of view into a temperature value. A thermal camera needs enough energy across an imaging band to build scene contrast.

Infrared Radiation, Detector Response, and Spectral Windows

Infrared radiation extends from roughly 0.75 to 1000 μm and is commonly divided into near-, mid-, and far-infrared regions. In an instrument, the usable range is narrower because the target, atmosphere, lens, window, detector package, and coating shape the final response. The 3–5 μm and 8–13 μm atmospheric windows are useful references, but they do not replace the detector curve or the transmission data of each optical element.

Application-to-Filter Matching for Three Detection Tasks

This is a starting point. The final choice still depends on detector response, angle of incidence, target temperature, source strength, and background radiation.

Narrowband, Broadband, and Longpass Filter Differences

A narrowband design transmits a limited region around a center wavelength. BoDian Optical classifies a filter as narrowband when its half-power bandwidth is no more than 6% of the center wavelength; a wider value is broadband. A longpass design suppresses shorter wavelengths and begins transmitting beyond a defined cut-on region.

BoDian Optical develops optical thin-film components for infrared detection, gas analysis, temperature measurement, and imaging. Its work covers coating design, substrate selection, sample processing, dimensional inspection, and spectral measurement. The infrared range includes narrowband, broadband, long wave pass, short wave pass, and anti-reflection products, together with wavelength, size, and coating customization.

How Do Infrared Filters Improve Gas Detection Accuracy?

Gas detection depends on how clearly the optical channel separates a target absorption feature from source drift, thermal background, window loss, and overlapping molecular bands. The filter works with the source, gas cell, detector, electronics, reference channel, and calibration model.

Target Gas Absorption Band Isolation

Common engineering reference points include methane near 3.30 μm, carbon dioxide near 4.26 μm, carbon monoxide near 4.64 μm, and SF₆ near 10.56 μm. The final center wavelength and bandwidth must still follow the gas spectrum, pressure, path length, detector response, and interfering species.

Blocking must be specified separately from passband transmission. Optical density follows OD = −log₁₀(T), where T is fractional transmission. OD2 allows no more than 1% transmission, OD3 allows 0.1%, and OD4 allows 0.01%.

BoDian’s INBP3375 is specified at 3375 ± 10 nm with HPB 40 ± 5 nm, peak transmission of at least 75%, and T < 0.1% in the stated blocking region. INBP4260 uses 4260 ± 45 nm, HPB 135 ± 20 nm, peak transmission of at least 92%, and T < 0.1% blocking. INBP10560 uses 10560 ± 70 nm, HPB 240 ± 20 nm, peak transmission of at least 90%, and T < 1% blocking. T < 1% corresponds to at least OD2. Projects requiring OD3 or OD4 must state that depth and its wavelength interval on the drawing.

Reference Channels and Interference Suppression

Many NDIR layouts compare a measurement channel with a reference channel. The measurement filter covers the gas band, while the reference channel tracks source aging, contamination, or background change. Its wavelength should sit outside the target absorption feature and away from strong interference.

A narrower passband can improve selectivity but reduces received energy. A wider band raises signal but may admit more cross-sensitivity. The practical choice comes from the gas spectrum and system noise budget.

BoDian Infrared Narrow Bandpass Filter Selection

BoDian’s Infrared Narrow Bandpass Filters include INBP3375 for CH₄ detection, INBP4260 for the 4.26 μm CO₂ band, and INBP10560 for SF₆ detection.

For infrared filters for gas detection, send the target gas, concentration range, path length, source type, detector curve, reference-channel wavelength, AOI, operating temperature, transmission target, OD depth, and blocking interval. Naming the gas alone is not enough.

How Do Infrared Filters Improve Non-Contact Temperature Measurement?

A non-contact thermometer converts received radiation into a temperature value. Radiation outside the calibrated channel can shift that value even when the detector and electronics work normally.

Thermal Radiation Isolation from Shorter Wavelengths

Every object above absolute zero emits infrared radiation, and its distribution changes with temperature. A filter limits the detector to the calibrated region and can reduce visible light, reflected lamp energy, hot-machine background, or shorter-wave radiation.

The complete response includes the filter, lens, protective window, and detector package. A filter cannot correct low emissivity, reflected background, a wrong emissivity setting, or a measurement spot larger than the target.

Longpass Cutoff Selection for Target Temperature and Detector Response

The cut-on wavelength should follow the target temperature range and detector response rather than a general “thermal” label. Material selection should account for the transmission region, thickness, thermal expansion, surface finish, and coating compatibility. BoDian Optical’s available infrared substrate options include silicon, sapphire, calcium fluoride, zinc sulfide, and zinc selenide.

Beam geometry must also appear on the specification. Interference features shift toward shorter wavelengths as AOI rises. For a converging beam, provide the f-number or marginal-ray half-angle rather than only the central AOI. State the AOI tolerance, filter orientation, and whether the curve is required for s-, p-, or unpolarized light.

BoDian Infrared Longpass Filters for Industrial Measurement

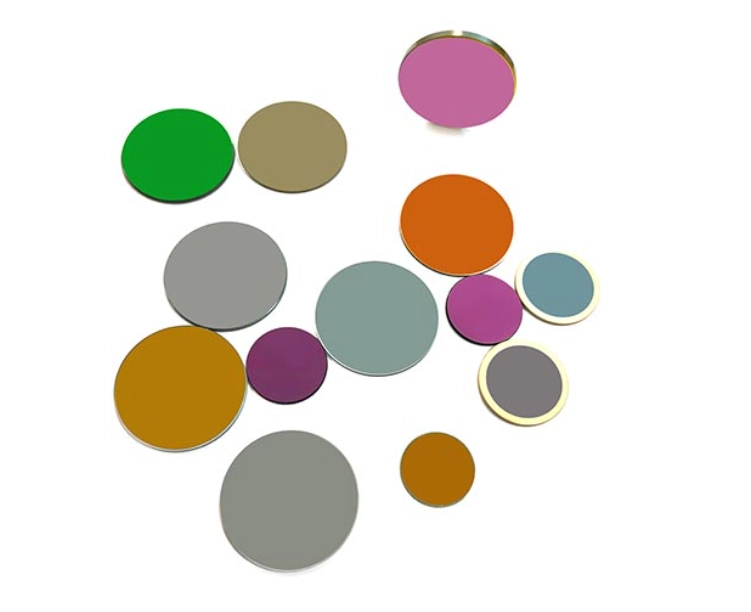

BoDian’s Infrared Long Wave Pass Filters include ILP3000, ILP5500, ILP7700, ILP8200, ILP10000, and ILP10600. ILP10000 is designed for industrial temperature measurement, with a 10000–18000 nm high-transmission region, peak transmission of at least 75%, and average transmission no higher than 0.1% across the stated 100–9400 nm blocking range. This is about OD2 on an average basis; a point-by-point OD3 or OD4 limit must be requested separately.

Approval should cover the cut-on definition, transition width, useful passband, blocking interval, test temperature, AOI, clear aperture, and complete calibration channel.

How Do Broadband and Longpass Filters Improve Thermal Imaging?

Thermal imaging needs spectral control without starving the detector of scene energy. The filter must preserve enough radiation for contrast while limiting leakage and unwanted background.

High-Throughput Collection across Infrared Windows

A thermal camera usually collects a wider band than a gas sensor, so thermal imaging optical filters often use broadband or longpass structures. The 3–5 μm and 8–13 μm windows are useful references, but atmospheric absorption, lens transmission, detector packaging, or a known interference source may narrow the practical band.

A wider band can raise received energy but may also admit more background. Judge the trade-off from detector sensitivity, target temperature, scene conditions, and whether the camera measures temperature or only displays contrast.

Broadband Passbands for Thermal Signal and Contrast

BoDian’s Infrared Broadband Pass Filters include IWBP3000-5000, IWBP5600-6800, IWBP6500-8400, IWBP8075-9400, and IWBP13000-13600. IWBP3000-5000 aligns with a common mid-wave window; the other bands suit systems designed around those ranges.

An infrared broadband pass filter should be selected by in-band transmission, blocking outside the band, edge position at the actual AOI, and detector compatibility. Bandwidth alone does not predict image quality.

Throughput, Blocking, and Image-Quality Trade-Offs

The camera sees the combined result of the filter, lens, window, detector, housing, and calibration. Surface defects, chipped edges inside the clear aperture, coating non-uniformity, or a reduced aperture may cause shading or lower throughput.

Acceptance checks should cover transmittance, reflectance, absorbance, dimensions, surface condition, clear aperture, and spectral uniformity across the coated area.

What Should Buyers Confirm Before Ordering Custom Infrared Filters?

A complete inquiry makes sampling and supplier comparison more useful. Define the assembled system first, then convert its needs into spectral, mechanical, environmental, and inspection requirements.

Optical Specifications and Operating Conditions

Start with the target wavelength or cut-on point, bandwidth, minimum transmission, blocking interval, OD depth, AOI, cone angle or f-number, detector response, operating temperature, size, clear aperture, and surface requirements.

For narrowband designs, state CWL and FWHM tolerances separately. For longpass designs, define the edge at 5%, 50%, or another transmission level. Also state whether blocking is an average or a maximum at every wavelength.

Substrate, Coating Process, and Test Validation

Substrate selection should follow the spectral window, mechanical layout, thermal exposure, polishing requirement, and coating process. BoDian Optical uses vacuum coating routes including magnetron sputtering and evaporation, followed by measurement of transmittance, reflectance, and absorbance.

Before production approval, request the spectral curve, test AOI, polarization condition, test temperature, dimensional report, clear-aperture definition, and surface-inspection criteria. Check the prototype in the assembled instrument because a room-temperature normal-incidence curve does not reproduce every working condition.

The matrix closes the filter-type decision, but the drawing must still state units, tolerances, test conditions, sampling plan, and acceptance data.

BoDian Custom Service, Sampling, and Contact

BoDian Optical can work from wavelength requirements, drawings, samples, or system-level optical needs. Custom work may cover passband, blocking interval, OD target, dimensions, substrate direction, coating structure, and quantity.

Sharing the detector curve, target spectrum, AOI distribution, mechanical drawing, and test format early helps determine whether an existing model can be used or a custom stack is needed.

Conclusion

Narrowband filters isolate gas absorption features. Longpass filters define the thermal channel used for point temperature measurement. Broadband and longpass designs collect scene energy for thermal imaging.

Infrared filters work best when the spectral curve is reviewed with the detector, source or target, beam geometry, blocking depth, operating temperature, and clear aperture. A model number is a starting point; the drawing and test conditions decide whether the component fits the instrument.

For a gas sensor, thermometer, or thermal camera project, prepare the target spectrum, detector response, incidence geometry, dimensions, operating conditions, OD requirement, and quantity. Use the BoDian Optical contact channel to confirm product direction, request spectral information, or discuss a custom sample.
