Narrowband Infrared Filters for Gas Sensing: Bandwidth, Blocking, and Signal Stability

The sample passes. Purchasing places a repeat order. Then somebody asks which test conditions were used for the approval, and the quotation doesn’t say. That’s a gap to close before ordering narrowband infrared filters for gas sensing.

Keep the curve, not just the bandwidth number. A useful approval record names the sample, the measurement setup and the limits used to accept it. With those fields agreed, the next shipment has a written basis for comparison. Without them, engineering and the supplier may be discussing different tests under the same part number.

Start with the Gas Channel and Its Optical Layout

A thin-film filter uses one or more dielectric or metal film layers on a separate substrate to change how light is transmitted. Transmission, absorption and reflection are among the optical properties used in filter design. A narrowband infrared filter passes a limited wavelength region and reduces transmission outside that passband.

Start the inquiry with the optical channel. Put the source spectrum, detector response and filter position beside the mechanical drawing. The person preparing the quotation needs to see the beam geometry and the available space too.

Define the target band and the system-level tradeoff

“For gas detection” is too broad for an RFQ. Use the HITRAN molecular spectroscopic database to check absorption for the target gas, then check the other species expected in the measurement path. Give the supplier the intended band rather than leaving it to infer one from the gas name.

Small signals against large backgrounds are a useful way to think about the job of a narrow passband; the NASA narrow-pass-band filter brief illustrates that problem. In the RFQ, address wanted signal and unwanted light together. “Narrower” by itself isn’t a reason to approve a part.

Freeze the test conditions before requesting a quotation

Write down the incidence angle, angular spread and measurement temperature. Include the source-facing side. If the supplier can’t reproduce the installed arrangement, have it show the test arrangement it proposes to use. That discussion belongs before sample approval, while a different setup can still be agreed.

Custom filter work can involve wavelength, physical size and film design. Sizes and shapes can be adapted to different requirements and uses. Keep the drawing revision attached to the spectral request when either one changes.

Specify Bandwidth with a Measurable Definition

Full width at half maximum, or FWHM, is the wavelength interval between the two points where transmission reaches half the passband’s peak value. Peak transmittance is the highest transmission within that passband. Center wavelength identifies the center of the passband; put its calculation method on the specification as well.

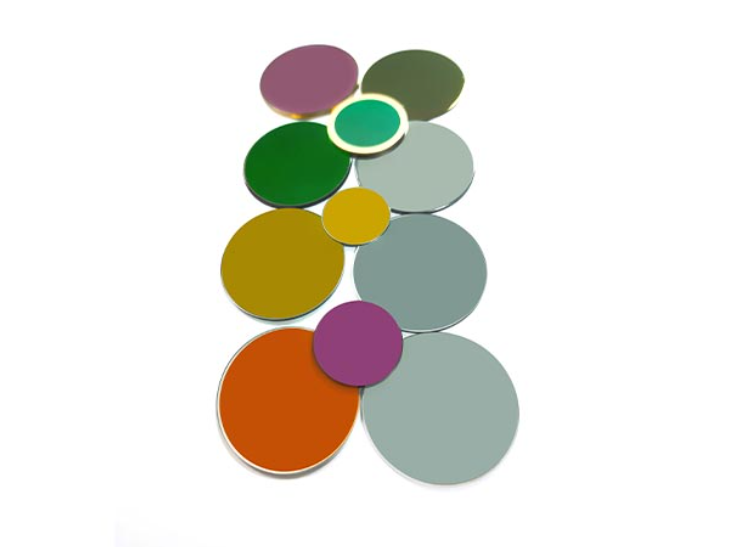

The INBP4260 infrared narrow bandpass filter is a CO₂ gas-detection filter. It provides a specific model to discuss when preparing a CO₂-channel inquiry. Don’t treat the application label as approval for the whole instrument: the tolerances, measurement setup and fit still need agreement.

Compare throughput and selectivity in the same channel

Put nominal bandwidth in one field and permitted variation in another. On the sample report, look for the actual half-maximum crossing points. If the report only gives a finished FWHM value, request the scan behind it and the spectral resolution used to take that scan.

A peak location isn’t the same quantity as the midpoint between half-maximum crossings. For an asymmetric band, make the intended center definition explicit. Otherwise, a discussion about an apparent shift can turn into a discussion about two different calculations. Carry the agreed definition into repeat orders.

Turn Out-of-Band Blocking into a Testable Requirement

The blocking range is the wavelength region outside the passband where light needs to be rejected. Write the required intervals explicitly. A statement such as “high blocking” doesn’t tell the supplier where to measure or what result you will accept.

For each blocked interval, enter a maximum permitted transmission and a test method. One practical question for the laboratory: will this be one scan, or will the report join several measurements? If the detector or instrument configuration changes between ranges, the report should mark where that happens.

“Below the reporting limit” and a measured transmission value need different labels. Ask for that distinction near the measurement floor. A trace that looks flat on a plot is no reason to write zero transmission into the inspection record.

Keep the passband out of the blocked intervals. Mark the intended ranges on one spectrum and have both sides sign off on that version. A short line saying “high blocking” leaves too much for the inspection team to interpret later.

Define Signal Stability as a Repeatable Comparison

What will “stable” mean on the incoming-inspection sheet? For a component check, a workable request is repeated scans of the same sample, with the center-wavelength definition, FWHM and transmission result held to agreed limits. Name the conditions beside those limits. This gives infrared filter signal stability a testable meaning without promising the behavior of an entire analyzer.

Optical filter testing includes transmittance, reflectance and absorbance as spectral quantities. A spectrometer measures these optical indicators across wavelength. At BoDian Optical, spectral measurement equipment covers ultraviolet, visible and infrared thin-film filters, including transmission T, reflection R and absorbance ABS measurements. For the order itself, specify which results you need supplied. Available measurement capability and an agreed delivery report are separate matters.

Include environmental conditions only when they match the application

For a temperature-related request, the timing of the scan belongs in the plan. Do you want a measurement at the exposure temperature, or after the part has returned to the baseline condition? Write down the temperatures and timing that matter to the application; don’t leave those choices until the report arrives.

Do the same for incidence conditions. For the underlying design effects, see angle of incidence and temperature. In the acceptance plan, your job is to name the conditions and define the comparison.

Separate component stability from instrument drift

A filter spectrum doesn’t establish the accuracy of the assembled gas analyzer. Keep component acceptance separate from verification with gas standards and the instrument’s calibration procedure.

When a signal changes, avoid assigning the cause to the filter before checking the rest of the channel. Request the component measurements needed to investigate it, and retain the corresponding instrument test record. Those records answer different questions.

Build an Acceptance Plan from Prototype to Production

Approve the prototype against a frozen measurement record

Attach the approved drawing revision and sample identity to the spectral report. Ask for numerical scan data as well as a readable plot. Record the measurement conditions and the acceptance decision together, including any deviation that was explicitly accepted.

Check the physical part too. Filter inspection covers dimensions and surface quality as well as optical performance. Calipers and micrometers are used for dimensional checks; visual inspection and microscopy are used to inspect the surface. Where double-sided polishing is required, check the specified condition, including broken edges or cracks, against the agreed acceptance criteria.

Compare production lots and define requalification triggers

Decide how samples are selected and identified for a lot before shipment. Keep the approved prototype curve beside the new results, but use the written limits for the acceptance decision. An approved sample is a reference. Its exact measured values shouldn’t quietly become additional tolerances that neither side quoted against.

Ask what changes require notification and another approval. You might include changes to the substrate, coating design or measurement method where these affect the agreed specification. Write the trigger into the purchase agreement; don’t assume it is already part of a supplier’s standard process.

RFQ and Incoming-Inspection Checklist

Use this table to prepare the request for quotation. Fill in actual values with the engineering team before using it as an inspection sheet.

Frequently Asked Questions

Should a gas-sensing filter always have the narrowest possible bandwidth?

No. Choose the bandwidth against the channel’s signal and interference requirements. Then agree on its definition and tolerance. A smaller nominal value alone isn’t an acceptance decision.

Does an out-of-band blocking value by itself prove the filter is suitable?

No. Confirm the wavelength intervals and measurement basis. A rejection value without its spectral range leaves the requirement incomplete.

Does a filter test report prove gas-analyzer accuracy?

No. It supports acceptance of the optical component. Verify the assembled analyzer under its own calibration and gas-testing procedure.

Close and Next Step

BoDian Optical develops optical thin-film products, including infrared narrowband filters. Its infrared filter series serves applications that include gas detection. Custom work includes processing to customer materials, samples or drawings, with wavelength, size and film-design requirements available for discussion.

Send the channel requirement, optical layout and current drawing with the inquiry. In the same request, say which measurements you want for the sample and which you expect with shipments. Have the quotation confirm that scope. Purchasing can then place the order against the conditions engineering actually approved.
