NDIR Gas Sensors for Pollution Monitoring: Why Filter Bandwidth Determines Sensitivity and Selectivity

For an NDIR gas sensor, Filter Bandwidth controls more than the width of a passband. It affects how much useful infrared energy reaches the detector and how well the sensing channel rejects wavelengths that do not belong to the target gas. A wider passband can strengthen available signal, while a narrower one can improve spectral separation. In pollution monitoring, the right filter must balance both needs and fit the source, detector, gas cell, and expected interference.

Why Does Filter Bandwidth Matter in NDIR Pollution Monitoring?

NDIR systems measure the reduction in infrared energy after light passes through a gas sample.

BoDian Optical develops optical thin-film components for ultraviolet, visible, and infrared applications, including gas analysis, infrared detection, temperature measurement, and monitoring. Its Infrared Narrow Bandpass Filter range is especially relevant to NDIR systems because a defined passband can be matched to a target sensing channel while unwanted spectral regions are blocked.

The Optical Path from Infrared Source to Detector

A typical NDIR path includes an infrared source, gas cell, optical filter, detector, and signal-processing electronics. The gas absorbs selected wavelengths as light crosses the cell. The NDIR gas sensor filter then limits the wavelengths reaching the detector so the measured signal is more closely linked to the target absorption region.

For environmental gas monitoring, this matters because stronger detector output is not automatically better data. Radiation outside the useful region may raise background signal without improving gas discrimination.

Filter Bandwidth Defines the Accepted Spectral Window

A narrowband filter is usually assessed through center wavelength, HPB, peak transmittance, and blocking performance. These specifications describe where the passband sits, how wide it is, how much useful radiation can pass, and how strongly unwanted regions are suppressed.

In practical design, filter bandwidth should be matched to the absorption region and detector response. A passband that is poorly centered or unnecessarily broad can reduce selectivity even when peak transmission is strong.

Target Absorption and Background Radiation Must Be Separated

The useful channel should collect enough radiation from the target absorption region while excluding as much unrelated energy as practical.

Bandwidth alone cannot determine sensor performance. Optical path length, source stability, detector responsivity, temperature compensation, calibration, and gas concentration range also influence the final result.

How Does Filter Bandwidth Change Sensitivity and Selectivity?

The design trade-off is between available signal and spectral discrimination.

Wider Passbands Can Increase Available Signal

A wider passband can send more infrared power to the detector, which may help when signal margin is limited.

If the passband reaches into neighboring absorption regions or background radiation, the detector can receive more energy without gaining more useful contrast. This is why passband width should not be increased only to obtain a larger electrical response.

Narrower Passbands Improve Spectral Discrimination

A narrower spectral window can better isolate a selected gas absorption feature and reduce cross-sensitivity. That is useful when nearby species or background radiation could influence the same detector.

But a very narrow passband can also reject useful energy. A CH₄ gas detection filter should therefore be chosen around the methane sensing channel, not from a general rule that narrower filters are always superior.

Transmission and Blocking Matter Alongside Bandwidth

CWL and bandwidth are only part of the specification. Peak transmittance affects useful optical throughput, while the blocking range limits leakage outside the passband. Substrate, aperture, surface condition, and measured spectral shape also affect integration.

For procurement, compare complete spectral requirements rather than one number.

How Should CO₂ and CH₄ Detection Channels Use Different Narrowband Filters?

CO₂ and CH₄ are useful examples because they require different sensing channels.

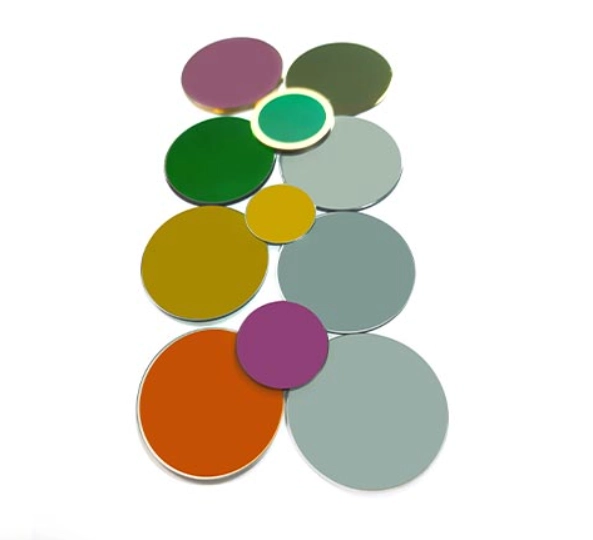

INBP4260 for CO₂ Detection

The INBP4260 Infrared Narrow Bandpass Filter is specified for CO₂ detection. It uses a sapphire substrate, with CWL 4260 ± 45 nm, HPB 135 ± 20 nm, peak transmittance ≥87%, and blocking from 100 to 30000 nm with T<1%. These values give engineers a concrete CO₂ gas detection filter specification to compare with their source, detector, optical path, and interference requirements.

INBP3375 for CH₄ Detection

The INBP3375 Infrared Narrow Bandpass Filter is specified for CH₄ detection. It uses a sapphire substrate, with CWL 3375 ± 10 nm, HPB 40 ± 5 nm, peak transmittance ≥70%, and blocking from 200 to 30000 nm with T<1%. Its smaller numerical HPB does not mean it is inherently better than INBP4260; the two parts serve different gas channels.

Different Gas Channels Require Different Spectral Designs

The two examples show why one narrowband specification cannot cover every gas. CO₂, CH₄, CO, NO₂, SO₂, O₃, and hydrocarbons require different spectral decisions.

For custom channels, define the target gas first. Then specify center wavelength, allowable passband width, transmission, blocking range, dimensions, and operating conditions. This helps determine whether a standard part is suitable or a custom infrared narrow bandpass filter is needed.

What Specifications Should Buyers Confirm before Selecting an NDIR Filter?

A filter that looks suitable on a catalog page can still be a poor fit for the assembled sensor. NDIR filter selection should connect optical performance with the mechanical package and the operating environment.

CWL, Bandwidth, Transmission, and Blocking Requirements

Start with the target gas and detector channel. Confirm CWL, wavelength tolerance, passband width, peak transmission, and the required blocking region. Request the spectral curve where possible, because it shows passband shape and leakage more clearly than a short specification table.

Substrate, Size, Aperture, and Operating Conditions

Infrared filter substrates can include sapphire, germanium, silicon, calcium fluoride, zinc sulfide, and zinc selenide. Selection depends on the required spectral window and system design.

The RFQ should also state diameter or custom dimensions, usable optical aperture, surface requirements, mounting method, angle of incidence where relevant, and the temperature and humidity conditions expected in service.

Spectral Testing and Batch Consistency

Prototype approval should include spectral verification as well as dimensional and surface checks. Transmittance, reflectance, and absorbance measurements help confirm whether the finished coating behaves as intended over the required wavelength range.

For repeat orders, compare actual spectral performance rather than relying only on the part number.

How Can Buyers Move from Filter Selection to a Production-Ready NDIR Solution?

The final decision should be based on the assembled instrument. A filter can meet its standalone specification and still produce weak signal or unwanted cross-sensitivity if the source, detector, gas cell, or calibration strategy is mismatched.

Prototype Validation before Volume Procurement

Test the filter in the real optical path. Check baseline stability, target-gas response, cross-sensitivity, available detector signal, and performance across the intended operating conditions.

If signal is weak, review source output, optical alignment, detector response, path length, and transmission before widening the passband. If selectivity is poor, inspect spectral overlap and blocking before simply narrowing it.

Custom Wavelength, Size, Substrate, and Coating Support

A standard part works well when its optical and mechanical specifications already match the sensor. Customization becomes more useful for non-standard gas channels, compact packages, different detector windows, or special passband requirements.

BoDian Optical supports wavelength, size, substrate, and coating-design customization, as well as work based on samples or drawings. This allows the filter to be reviewed as part of the actual instrument rather than as an isolated optical component.

Service and Contact Support for NDIR Projects

If your project has a difficult balance between signal strength and selectivity, prepare the target gas, wavelength, Filter Bandwidth, transmission and blocking requirements, dimensions, substrate preference, operating conditions, and expected quantity. Sharing these details through the BoDian Optical contact channel gives the technical team a clearer basis for standard-part selection, sample evaluation, or custom design.

FAQ

Q: What Is Filter Bandwidth in an NDIR Gas Sensor?
A: Filter Bandwidth is the spectral width passed around the target region. It affects both the infrared energy reaching the detector and the degree to which the sensing channel isolates the target gas absorption feature.

Q: Does a Narrower Passband Always Improve Gas Detection?
A: No. A narrower passband can improve spectral discrimination, but it can also reduce useful optical energy. The correct width depends on the target gas, interfering species, source output, detector response, optical path, and required signal margin.

Q: What Should I Send to a Supplier before Ordering an NDIR Filter?
A: Provide the target gas, desired center wavelength, passband width, peak transmission requirement, blocking range, dimensions, substrate preference, angle of incidence if relevant, operating environment, and expected quantity. A drawing or existing sample can also help with custom projects.
