Optimizing NDIR Gas Sensor Accuracy: A Guide to Selecting Narrowband IR Filters

In gas safety tool design, precise measurements mark the difference between useful gear and risky breakdowns. Current fields, such as oil processing plants and business heating systems, call for quick and exact gas level checks. Reliable non-dispersive infrared detection centers on a key light part. Choosing proper Narrowband IR Filters decides if the tool spots wrong alerts or correctly gauges small gas traces to parts-per-million levels.

As an expert in light thin-layer tech, BoDian Optical acts as the core maker for tough gas check tasks. From a modern site, the group blends 18 years of field know-how with full auto layer tools from Germany and Japan. This arrangement supplies the needed wave ranges and heat steadiness for work sensors. Adding these exact parts boosts output lines with better rates and lasting site trust. Thus, gas check goods stay current.

The Principles of NDIR

Non-Dispersive Infrared (NDIR) method ranks as the top pick for gas checks. It gives steady work over time and picks out gases clearly. This happens without using up chemical parts. The base rules follow the Beer-Lambert law. Light weakening ties straight to the amount of gas that takes in light along the light path.

A basic NDIR setup has a wide infrared light start, a well-made gas sample space, an optical screen, and an infrared catch tool. Wide light passes through the space. The goal gas takes in certain waves there. To pick out this sign, an NDIR gas filter goes right over the catch window. These parts stop all extra light. Only the right take-in wave for the goal gas gets through. A fall in light power at that wave gives a clear, live gas amount read. Strong Narrowband IR Filters allow this exactness. They form the main measure part.

Specific Wavelengths for Specific Gases

For solid single or group gas catchers, one must single out the clear take-in tops of each goal mix. The light plan sets the feel and pick power of the whole check unit. It shapes what the sensor notes and what it skips.

4.26μm: The Standard for CO2

Carbon dioxide takes in infrared light well at exactly 4.26μm. This wave matters for room air check tools, need-based air flow in wise builds, and auto plant setups. A 4.26um filter that lets near waves through brings wrong high marks from air damp or other gases. Tight control on the pass range is needed. It must hold the 4.26μm top firm. At the same time, it cuts extra noise with a strong block area. This guards full data trust for control setups.

3.31μm / 3.46μm: Isolating CH4 and Hydrocarbons

Methane (CH4) burns easy. Quick spotting in coal sites, gas fuel plants, and oil chem spots is key for safe runs. CH4 checks often use the 3.31μm or 3.46μm areas. Many oil mixes share take-in traits in the 3μm to 4μm zone. Thus, picking a sharp Infrared narrow bandpass filter stands as the main build choice. A 3.31um filter with keen start and end cuts stops mix talk from like gases. It gives a plain methane read free from other quick mix blends.

3.91μm: The Reference Channel

A solid NDIR sensor needs a firm base line for steady marks over years of steady use. The 3.91μm wave works as the common base path. Common goal gases like CO2, CH4, or carbon monoxide skip it. By checking light power at 3.91μm non-stop, the setup fixes for normal light start fade, dust build in the gas space, and heat-based catch changes.

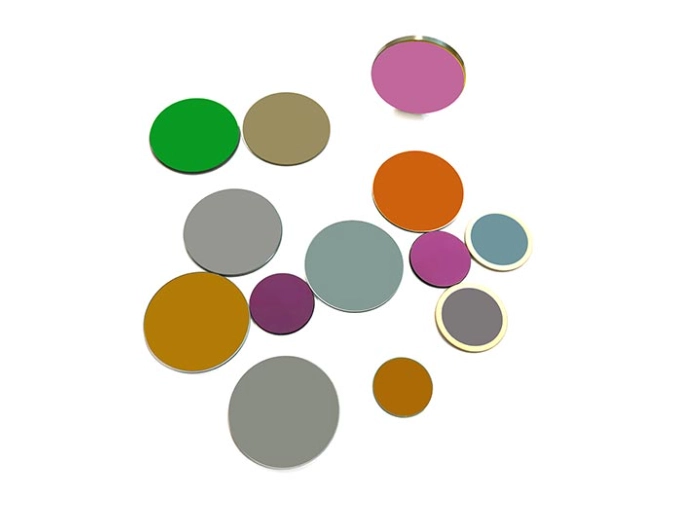

Solving the “Thermal Shift” Problem in Narrowband IR Filters

Site sensors seldom work in set-climate labs. They meet rough spots, from -40°C in cold pipes to +85°C in big machine rooms. Sharp heat changes make usual light layers grow or shrink. This small body shift causes a Thermal shift in the main wave (CWL). When CWL moves from the goal gas take-in top, the sensor drops its set point. This leads to risky gaps in safety links.

To fight this weak spot, the make steps use better Ion-Assisted Deposition (IAD) method. It hits the base with strong ions in layer time. This builds thick, mass-like electric layers. These firm layers show almost no heat move. Adding these heat-steady Narrowband IR Filters holds gas checks true no matter the outer air. It cuts needs for steady soft set-again and high site fix costs.

Durability in Harsh Environments

Past high heat, work sensors face steady high wet, biting chem fumes, and hard shake moves. Sea uses bring salt mist to sensors. Waste water plants add much hydrogen sulfide. Soft light layers take in air wet. This makes film parts swell, change the light path, and at last peel from the base.

Firm-coated Narrowband IR parts fully stop wet entry. The thick mole build keeps water steam from going into filter layers. It holds the right wave shape even in full wet air spots. If the place has special rough spots or set base stuff like Silicon or Sapphire, customized light plans match the exact body sizes. Using tough Narrowband IR Filters keeps fix costs very low. It also raises full sensor run time at sites.

Summary

Making a trusty gas sensor calls for a make ally who knows infrared rules well. With 18 years of tech build in gas check work, the build group has honed exact thin-layer put-down. This past rests on fixing hard pass and block tasks for top gear makers. Sensing tech needs a steady base. These sharp optics give the right work for current air watch nets.

Conclusion

Wrong sensor reads from wave move harm full work safety setups. We supply a full 4.26μm and 3.31μm set product sheet, fit design ideas, and pro put-in help. These fit the project shape just right. Thus, one can hold goal gases with full exactness. Give the exact setup details and contact the build team to get the best Narrowband IR Filters for NDIR tools.

FAQ

Q: How does the bandwidth (FWHM) affect my NDIR sensor performance?

A: A tighter FWHM boosts gas pick by stopping take-in bands from near gases. Yet, too tight FWHM cuts the full light to the catch tool. This drops the power sign. Picking right Narrowband IR Filters means even gas pick with top sign power for the set catch feel.

Q: Can high humidity ruin my gas sensor’s optical filter?

A: Yes. Usual open layers take water steam. This shifts the bend rate of parts and moves the goal wave. Firm-coated Narrowband IR Filters made with IAD method have thick builds. They stop wet entry and hold light work in wet farm or sea spots.

Q: Why is the 3.91μm reference channel so critical for long-term accuracy?

A: The 3.91μm path works as a full check base. Goal gases skip take-in here. Any light power drop shows a body setup issue, like a dim infrared start or dust in the gas space. This lets setup soft auto-fix for body wear. It stops wrong low gas reads over time.
