Why advanced machine vision needs SWIR filters for expanding vision beyond the visible

Machine vision keeps expanding the limits of automated checks. It moves beyond basic optical limits. To spot concealed flaws and material traits, current factory setups depend on SWIR filters. These parts work in the Short-Wave Infrared range. They pick out exact wavelengths. This lets sensors grab key details that people cannot see. When you create strong optical setups, choosing the proper maker decides how dependable your system stays over time.

As a specialist in optical thin-film methods, BoDian Optical offers years of solid engineering skill for your toughest tasks. From a modern national high-tech site, we focus on exact optical layers from ultraviolet to infrared ranges. Our automatic production uses top imported evaporation and magnetron sputtering tools. Such setup gives tight process oversight, even film layers, and great reliability across batches. We handle main steps to provide very narrow bands, transmission over 90%, and strong cutoff up to OD6. If you need tough resistance to weather for outside use, quick models for fast tests, or large runs for steady supply, our group gives high-output fixes made just for your optical needs.

Why SWIR Light Enables Invisible Detection Beyond Visible Spectrum

The Short-Wave Infrared range covers about 1100nm to 2500nm. It opens up fresh imaging options. In this area, light particles act with stuff in ways quite different from visible light. Rayleigh scattering drops with the fourth power of the wavelength in reverse. So, longer SWIR waves pass smoothly through dust in the air, mist, and some packaging types.

Even more key, items that block visible light fully often let SWIR light through. Silicon shows this clearly. On the other hand, water soaks up certain SWIR waves a lot. This makes dark areas with high contrast on wet goods. Various plastics bounce back and soak up these waves in special ways. They form clear chemical marks. With good SWIR filters added, your InGaAs sensors catch these exact reactions. Thus, hidden traits turn into useful, sharp image info.

Practical SWIR Filter Applications in Industrial Machine Vision

By 2026, as the tech grows, short-wave infrared imaging changes several main fields. It boosts output and security.

Silicon Wafer Inspection

The chip field requires perfect quality checks. Silicon lets light pass above 1100nm. So, SWIR imaging views inside wafers and circuits directly. This clear view shows tiny cracks, line-up mistakes, and join gaps that outer checks overlook. Such skill matters a lot in final line steps and for matching layered setups. Pair your camera with an accurate infrared short wave pass filter. It blocks heat noise and extra light. As a result, you get the clear edges required to find small flaws before chips go into packs. This cuts huge costs in chip making.

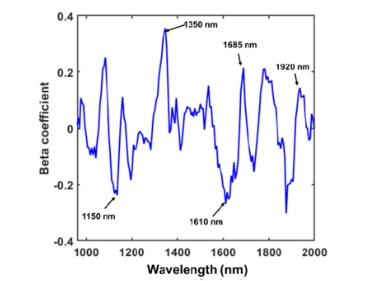

Food & Plastic Sorting

In waste reuse and food checks, stuff that seems the same in visible light has varied chemical builds. SWIR imaging sorts plastics by their special soak-up points with ease. In farm handling, it spots inner damage in produce or picks out odd items on belts by aiming at water soak bands.

Key Criteria to Choose High-Performance SWIR Filters

For the detection sharpness in these uses, your gear needs more than a strong camera. It calls for exact optical blocks. Two chief points shape how well your optics perform: the base material and the thin-film layers on it.

Substrate Choice: Fused Silica vs. BK7

The base of your filter changes its light-pass curve. BK7 glass works fine for usual visible jobs. However, its light-pass falls a lot near 2000nm. It also has a bigger heat growth rate. Fused silica gives better light-pass over the full SWIR area. Plus, it shows low heat growth and strong build strength. If your task reaches the high end of SWIR or runs in changing heat, fused silica meets the clear sight and tough build your sensor requires.

The Role of Anti-Reflective (AR) Coatings

InGaAs sensors do well in SWIR. Yet, they need the most light catch to run at fast speeds. Plain glass bounces back about 4% of light per side. This leads to signal drop and possible blur. A solid AR coating cuts these bounce losses. It raises the total light to your detector. Such gain in feel lets you cut light power or speed up belts without losing image sharpness.

Custom SWIR Filter Solutions for Special Machine Vision Needs

Off-the-shelf optics seldom match the strict needs of special factory tools. Your work may call for a very set center wavelength, like the 1550nm band common in telecom, LiDAR, and certain sense tasks. You require firm hold on the band width, block depth, and size. Through customized optical answers, you set the precise light profile. We use advanced magnetron sputtering to place exact layer builds. This shapes your SWIR filters for sharp start and stop edges. They lock in your target wavelength just right.

Real Case: Optimizing Defect Detection with Custom SWIR Filters

Think of a fast bottle plant facing trouble spotting fill heights through cloudy plastic bottles. Visible cameras did not work at all. The first SWIR system had issues with shine and wide heat mix. It reached only 82% accuracy. Then, by adding aimed SWIR filters set right at the liquid’s main soak wavelength, with OD4 block depth to cut factory lights, the setup gained great contrast. Now, the image software could mark the liquid edge clearly. This pushed accuracy close to full and cut wrong rejects sharply.

Conclusion

Poor image edges and stray light mess up the steadiness of your auto check lines. We supply exact SWIR filters. They help you fix on vital wavelengths and stop wrong reads. Share your sensor limits and site details. Then, you get our made-to-fit design ideas, 1550nm standard sheet data, and pro setup tips for your project setup. Please contact our engineering group with your system specs to get the precise optical work your factory vision requires.

FAQ

Q: Why can’t I just use a standard visible-light camera for silicon wafer inspection?

A: Visible light is fully absorbed by silicon. For inner structure checks, wavelengths over 1100nm are needed. There, silicon acts like clear glass. Pair it with suitable SWIR filters to pick the right check band.

Q: Does the operating temperature affect the filter’s performance in a factory setting?

A: Basic layers can move their center wavelength a bit in big heat shifts. But filters made with thick, water-proof sputtering keep high weather hold. They limit spectral moves to the least even in rough factory spots.

Q: How do I choose between an interference edge filter and an absorption filter for my machine vision setup?

A: Absorption filters give broad block but soft edge shifts. This limits sharp work. Interference filters use many dielectric layers. They offer very steep edges and fine passband control. So, they beat others for picking exact chemical marks in sort tasks.
