Why ND Filters Cannot Replace Infrared Filters in Optical Sensor Systems

Choosing between an ND filter vs infrared filter starts with a simple engineering question: is the sensor receiving too much light, or is it receiving light from the wrong spectral region? These problems can produce similar symptoms—saturation, reduced contrast, or unstable readings—but they require different optical solutions. An ND filter mainly reduces light intensity, while an infrared filter controls which wavelengths reach the detector.

BoDian Optical develops optical thin-film filters for infrared detection, imaging, temperature measurement, instrumentation, and related sensor systems. Its infrared product range includes long pass, short pass, narrow bandpass, broadband, and anti-reflection filters, with wavelength, size, substrate, and coating design available for project-specific requirements.

What Optical Problem Is the Sensor System Actually Trying to Solve?

Before comparing filter names, define what the optical path needs to change. In filter specification, the first practical question is the purpose of the filter, because performance targets should follow from the final system requirement rather than from a catalog category alone.

This makes the ND filter vs infrared filter decision easier: one primarily manages signal level, while the other manages spectral content.

ND Filters Control Overall Light Intensity

An ND filter is appropriate when excessive optical power is the main problem. In an imaging or measurement system, reducing irradiance can keep the detector within its usable response range without deliberately isolating one narrow spectral region.

For example, an ND filter for infrared sensor integration may be considered when the target signal is already spectrally correct but its intensity is too high. The key requirement is then controlled attenuation across the intended operating range.

This is different from selecting a wavelength filter. If an unwanted part of the spectrum is still reaching the detector, reducing the complete signal may weaken both the useful and unwanted radiation at the same time.

For readers who need the basic terminology first, BoDian also provides a separate guide to the difference between ND filter and infrared filter.

Infrared Filters Control Spectral Transmission

An infrared filter works around transmission, reflection, absorption, passbands, and blocking regions. BoDian evaluates filter optical performance through spectral properties such as transmittance, reflectance, and absorbance, and its infrared range includes ILP, ISP, INBP, broadband, and anti-reflection structures.

For an infrared filter for optical sensor design, the engineering question changes from “How much light should remain?” to “Which wavelengths should reach the detector?”

That difference is fundamental in thermal sensing, gas analysis, infrared imaging, or any application where useful information is tied to a defined spectral region.

Detector Response Sets the Selection Logic

The filter should be evaluated together with the source spectrum and detector response. A signal that appears too strong does not automatically mean more attenuation is required.

If the detector responds outside the useful spectral range, unwanted wavelengths may be contributing to the reading. In that case, spectral blocking may improve the signal more effectively than simply lowering total irradiance.

Why Can an ND Filter Fail in an Infrared Sensor System?

A common mistake in an ND filter vs infrared filter comparison is to assume that lower detector output means the optical problem has been solved. The reading may be lower, but spectral contamination can remain.

Intensity Reduction Does Not Equal Infrared Rejection

An ND designation primarily describes attenuation behavior. It does not, by itself, define an infrared rejection range.

This is why infrared leakage through ND filter should be treated as a specification issue rather than an assumption about product type. If unwanted infrared radiation must be suppressed, the buyer should request measured spectral performance over that wavelength interval.

An attenuation value without its relevant wavelength range does not tell an optical engineer whether the filter will remove the radiation causing interference.

Unwanted Wavelengths Can Still Reach the Detector

BoDian infrared filters are used in applications including infrared detection, temperature measurement, thermal imaging, instrumentation, automotive systems, healthcare equipment, and safety monitoring.

Across these applications, the detector may receive radiation from more than the desired region. A standard ND filter can reduce the total signal, but it cannot be assumed to isolate the useful band.

The result may be lower signal amplitude without a corresponding improvement in spectral selectivity.

Passband and Blocking Must Be Specified Separately

For optical filters, transmission and rejection are separate specification tasks. Professional filter specifications may include peak wavelength, peak transmittance, bandwidth, and rejection in stopping zones. Blocking can also be defined by maximum average transmission across a range or by an absolute transmission limit at specified wavelengths.

This means an infrared filter blocking range should always be stated together with the required passband.

A practical RFQ should answer two questions:

Which Infrared Filter Architecture Fits the Sensor Application?

The next stage of the ND filter vs infrared filter decision is filter architecture. If wavelength selection is required, buyers should determine whether the system needs a broad region beyond a spectral edge or a much narrower target band.

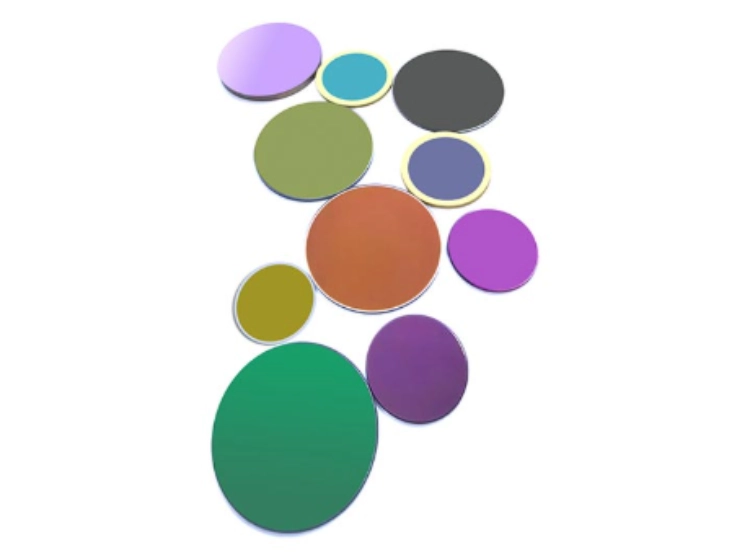

Infrared Long Pass Filters Preserve a Broad Infrared Region

An Infrared Long Pass Filter is appropriate when shorter wavelengths should be rejected while a longer infrared region remains available to the detector. BoDian lists multiple ILP configurations within this category rather than treating long-pass filtering as one fixed wavelength product.

This architecture can suit temperature measurement, thermal-radiation detection, security monitoring, and other systems where the useful signal lies beyond a defined spectral boundary. BoDian’s product documentation also associates infrared long-pass structures with infrared temperature and thermal-related measurement applications.

The filter should therefore be selected from the detector response and desired cut-on region—not simply because the device is described as “infrared.”

Infrared Narrow Bandpass Filters Isolate a Target Spectral Region

An Infrared Narrow Bandpass Filter serves a different purpose. Instead of preserving a wide region after an edge, it isolates a defined wavelength band.

BoDian classifies filters with a half bandwidth within about 6% of the center wavelength as narrowband, while wider designs are treated as broadband.

This makes INBP filters more relevant to applications such as gas detection or spectral sensing, where information is associated with a particular absorption or emission feature. The center wavelength, bandwidth, peak transmission, and out-of-band blocking become more important than simply lowering optical power.

Application Requirements Determine the Better Architecture

The practical selection can be summarized simply:

• Use ND attenuation when the spectrum is already correct but the signal level is too high.
• Consider an Infrared Long Pass Filter when the useful signal occupies a broad longer-wavelength region after a spectral edge.
• Consider an Infrared Narrow Bandpass Filter when the detector needs to isolate a defined spectral feature.

For projects requiring both attenuation and spectral rejection, these functions may need to be designed together rather than forcing one filter type to perform a role it was not specified for.

What Specifications Should Buyers Confirm Before Ordering?

A useful ND filter vs infrared filter comparison should end with procurement requirements, because two filters with similar category names can behave differently once substrate, dimensions, blocking range, and system geometry are added.

Passband, Peak Transmission, and Blocking Range

Start with the useful spectral region. Specify the required passband, acceptable transmission, spectral edge or center wavelength, and the unwanted wavelengths that must be blocked.

BoDian’s testing process covers transmittance, reflectance, and absorbance across ultraviolet, visible, and infrared regions, allowing filter evaluation against the intended spectral specification.

This is also the core of how to choose infrared filter for sensor integration: define what the detector should receive before choosing the coating structure.

Substrate, Size, and Optical Aperture

Spectral performance alone is not enough for a mechanical design. BoDian works with infrared substrate materials including silicon, germanium, zinc sulfide, and calcium fluoride, while product dimensions and shapes can be adapted to customer requirements.

Buyers should also define clear aperture, dimensions, thickness, mounting space, and relevant surface requirements. Optical aperture and surface condition are part of component inspection rather than secondary details.

Angle, Test Conditions, and Acceptance Criteria

A filter specification should connect optical performance with manufacturing and test conditions. Filter specifications normally involve performance requirements, manufacturing requirements, and test requirements rather than one ideal transmission curve alone.

For system integration, buyers should therefore communicate angle of incidence, beam geometry, spectral test range, and acceptable tolerances. Acceptance angle can also affect whether a stated spectral performance remains suitable in the installed optical path.

How Can BoDian Optical Support the Final Filter Selection?

Once the optical requirements are defined, product selection becomes a specification-matching task rather than a catalog search. BoDian can work from wavelength, detector, substrate, dimension, and coating requirements to determine whether an existing ILP or INBP configuration fits the project or whether customization is required.

Category-Level Selection with ILP and INBP

For broad long-wave transmission, an Infrared Long Pass Filter provides a logical starting architecture. For selective detection around a defined wavelength, an Infrared Narrow Bandpass Filter is more appropriate.

This category-first approach helps prevent a common procurement mistake: choosing a familiar model first and trying to adapt the system around it later.

Custom Wavelength, Size, and Coating Design

BoDian supports customization of wavelength, dimensions, and film design across ultraviolet to infrared applications. The production process can include substrate selection, coating, and spectral testing within the same manufacturing workflow.

This is useful when detector response, packaging dimensions, or required blocking regions do not match a standard product.

Spectral Testing and Project Support

BoDian performs spectral testing for transmission, reflection, and absorption and also supports processing from supplied materials, samples, or drawings.

For procurement teams, this means the discussion can start with the actual optical requirement rather than only a product number.

The practical rule for ND filter vs infrared filter selection is straightforward: use ND attenuation when the main problem is excessive signal level; use an infrared filter when system performance depends on which wavelengths reach the detector. ILP suits broad transmission beyond a spectral edge, while INBP suits selective detection around a defined band.

If your project has an unclear passband, blocking target, detector response, substrate requirement, or installation constraint, prepare those details before supplier review. You can then contact BoDian Optical with the optical requirements, drawings, detector information, and expected operating conditions so the filter structure can be evaluated against the actual system.

FAQ

What is the main difference in an ND filter vs infrared filter comparison?
An ND filter mainly controls optical intensity, while an infrared filter controls spectral transmission and rejection. If the problem is detector saturation, attenuation may be enough. If unwanted wavelengths are reaching the detector, a spectrally selective infrared filter is usually required.

Can an ND filter block unwanted infrared radiation?
Only if its measured spectral performance confirms sufficient attenuation over the required infrared range. An ND designation alone does not define an IR blocking band, so buyers should request transmission data across the wavelengths relevant to the detector.

Should I choose an Infrared Long Pass Filter or an Infrared Narrow Bandpass Filter?
Choose an Infrared Long Pass Filter when the system needs broad transmission beyond a defined spectral edge. Choose an Infrared Narrow Bandpass Filter when the detector must isolate a specific wavelength region, such as in gas detection or spectral measurement.
