IR-Cut vs. Narrow Bandpass: Choosing the Right Optical Filters for Medical Cameras

For medical cameras, the correct filter depends on the imaging objective: use an IR-cut filter for broadband visible-light imaging and true color, and use an infrared narrow bandpass filter when the camera must isolate a defined fluorescence emission. If a system must support both white-light navigation and fluorescence, use separate optical channels or a controlled switching mechanism. The final choice should be verified against the illumination spectrum, detector response, center wavelength, bandwidth, blocking level, angle of incidence, and sterilization environment.

BoDian Optical engineers precision thin-film components specifically for clinical diagnostics and analytical instrumentation. With decades of vacuum deposition manufacturing expertise, we develop customized optical layers that eliminate chromatic distortion, block environmental thermal noise, and maximize photon throughput in highly sensitive environments. Navigating the optical path requirements for modern diagnostic hardware requires a strict evaluation of component capabilities, specifically distinguishing when to utilize infrared cutoff mechanisms versus precise narrow bandpass cavities.

IR-Cut Filters for True-Color Medical Imaging

For white-light laparoscopy, dental cameras, surgical microscopes and many other medical applications the standard choice is an IR-cut filter. The purpose of an IR-cut filter is to allow the visible part of the light to pass through to the sensor while blocking near-infrared light that the silicon sensor would normally pick up but that the human eye does not see. More broadly, infrared filters in medical imaging and physiological monitoring are selected according to whether the system needs broadband color fidelity or wavelength-specific signal isolation.

Why Silicon Sensors Need Infrared Rejection

CMOS and CCD sensors made from silicon are still sensitive to light near to infrared up to around 1100nm. The Bayer color filter array does not perfectly remove this out-of-band information, so near-infrared light is scattered across the red, green and blue color pixels in the sensor. This results in a hazy or even reddish image with unstable white balance and low contrast between tissues. To prevent this near-infrared light from entering the color pixels in front of the sensor, an IR-cut filter is used. The filter ensures that color calibration is consistent.

Why 400-700 nm Transmission Matters in White-Light Imaging

A visible medical camera typically requires high transmission in the wavelength range of about 400-700 nm and a very sharp cut-off at the red end. The cut-off should be as steep as possible in order to block near-infrared radiation while allowing red light to be transmitted for blood and tissue visualization. This type of filter is a steep-edge shortpass filter. The optical drawing or datasheet should specify the transmission band, edge position, edge slope or band width, blocking region and angle of measurement.

When an IR-Cut Filter Is the Correct Choice

If you are capturing broadband visible light for purposes of rendering images in color and there is no single line of fluorescence being measured, then an IR-cut filter is the proper filter. However, this type of filter is generally not recommended to be used as the sole filter for an ICG fluorescence channel, as it can block important near-infrared light from reaching the detector.

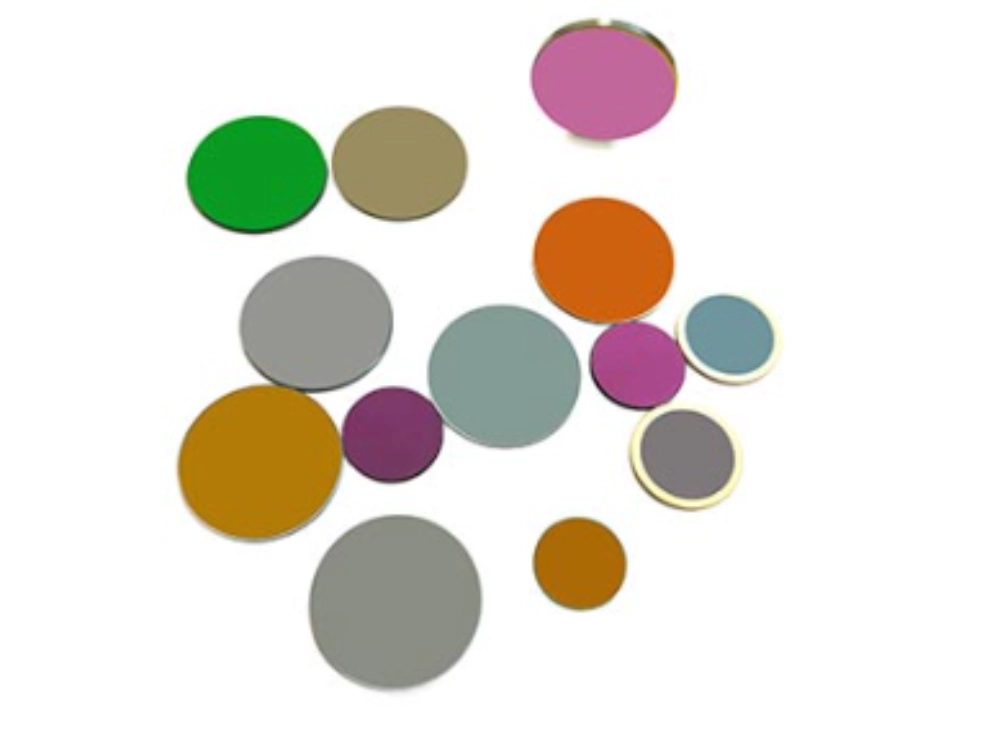

Infrared Narrow Bandpass Filters for Fluorescence Imaging

An Infrared Narrow Bandpass Filter is designed for signal extraction. It allows a specific emission window to pass through while blocking much brighter illumination, visible light, and other near-infrared radiation.

Matching the Filter to the Biomarker Emission Peak

The fluorescence emission from Indocyanine Green (ICG) angiography is in the near-infrared region around 830 nm. Thus, the filter center wavelength has to be set according to the emission peak and the detector used and not according to the trade name of the dye. A multi-cavity Fabry-Perot filter design allows for a fixed center wavelength and a defined bandwidth (FWHM) and thus a trade-off between signal intensity and background suppression.

Controlling FWHM and Out-of-Band Blocking

A narrower FWHM can improve rejection of unwanted light, but it also reduces the amount of useful fluorescence transmitted when the source or emission peak shifts. The design should therefore state the target CWL, FWHM, peak or average transmission, and blocking bands together. For fluorescence systems exposed to intense excitation light, OD4-OD6 in the rejection zones may be required. OD4 to OD6 corresponds to suppressing the unwanted band by approximately 10,000 to 1,000,000 times, subject to the specified wavelength range and test method.

What Happens When the Filter Type Is Misapplied?

Using an IR-cut filter in a fluorescence channel can suppress the near-infrared emission and produce weak or incomplete vessel visualization. Using a narrow bandpass filter in a white-light camera removes broadband color information and can produce a dark or nearly monochromatic image. Before optical design release, confirm four items: the illumination spectrum, biomarker emission peak, detector response range, and required blocking band. This check prevents approval based only on a nominal center wavelength.

IR-Cut vs. Narrow Bandpass: Selection Rules

System-Level Optics for Medical Imaging

Anti-Reflection Coatings and Ghosting

High-index surfaces, uncoated, lose light as Fresnel reflectors. While the amount of reflectance of such a surface depends on the index of the substrate, on the wavelength, and on the polarization of light, for a silicon surface of about 3 index, near-normal incidence, about 30% of incident light is reflected by a single surface of air against the substrate. This light and the resulting parasitic images can weaken the already weak fluorescence signal of a multi-lens camera and even produce ghost images. However, surface reflectance can be reduced to below 1% within a specified wavelength band by anti-reflective coatings, which are designed to optimum reflectance and which the supplier must specify for the respective substrate, wavelength range, angle, and measurement conditions.

Dual-Channel Architectures and Longpass Barriers

Systems capturing visible anatomy and near-infrared fluorescence simultaneously use a dichroic or longpass barrier for directing the longer wavelength light to a dedicated detector. The longpass edge must match the IR-cut path, the narrow bandpass filter’s passband, and the source’s illumination spectrum. An optical drawing of the complete channel response is more useful than a simple drawing of a single filter’s transmittance curve.

OEM Specification Checklist

For an OEM medical camera project, approve the filter against measurable acceptance criteria rather than an application label alone. Request the center wavelength and tolerance, bandwidth as FWHM, peak or average transmission, blocking performance with its OD value and wavelength range, and the maximum tested angle of incidence. For reusable surgical equipment, document the sterilization method, temperature, pressure, cycle count, and measured spectral change after testing. These fields give the optical, mechanical, quality, and purchasing teams one acceptance document for sample approval and production release.

AOI Compensation for Wide-Angle Lenses

As the angle of incidence increases, the effective optical thickness of dielectric layers decreases and the passband shifts toward shorter wavelengths. Wide-angle endoscope lenses can expose the filter to a range of incident angles, so the design should state the AOI distribution and whether the CWL is pre-compensated. Verify the complete filter curve at the intended field angles before locking the lens and filter stack.

Sterilization and Coating Durability

Autoclave steam and repeated chemical wiping can attack poorly adhered or porous coatings. Specify the sterilization method and number of cycles, then require post-test inspection for delamination, crazing, pinholes, and changes in transmission or blocking. MIL-C-675 or another customer-specified durability method may be used where its scope and test conditions match the device requirement; the exact standard and revision should be recorded in the quality plan.

Procurement Next Steps

Before requesting a quotation, provide the illumination spectrum, biomarker emission peak if applicable, detector model or response range, CWL, FWHM, transmission, OD bands, clear aperture, substrate material, thickness, AOI range, sterilization method, annual volume, and drawing tolerances through BoDian’s contact page. This information allows engineering and purchasing to compare proposals on the same basis.

FAQ

Can IR-cut and narrow bandpass optics operate in the same endoscopic system?

Yes. A dual-sensor architecture, dichroic splitter, or mechanically switched optical path can use an IR-cut filter for white-light navigation and an infrared narrow bandpass filter for fluorescence. The channels must be evaluated together so that switching, leakage, AOI, and detector exposure remain within specification.

How do anti-reflection coatings improve weak fluorescence signals?

They reduce Fresnel reflection at lens, window, and filter surfaces, allowing more useful photons to reach the detector and reducing internal ghost reflections. The improvement must be judged over the actual wavelength band and angle range of the medical camera.

Do angle-of-incidence shifts affect medical camera filters?

Yes. Dielectric interference filters can blue-shift as the incident angle increases. Wide-angle systems should use an AOI-compensated design and verify the passband across the full field rather than at normal incidence only.
